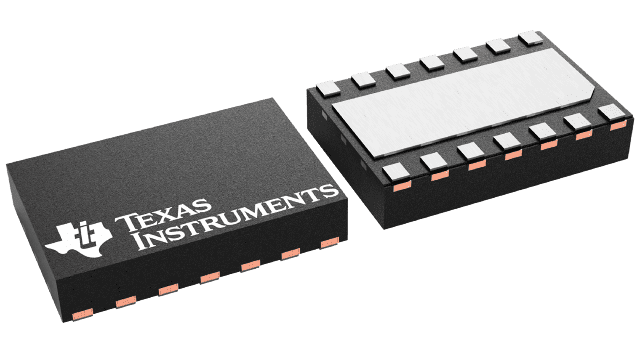

TLIN1022DMTTQ1 Texas Instruments - Yeehing Electronics
Dual Local Interconnect Network (LIN) Transceiver With Dominant State Timeout
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.496 |
100 — 249 | 1.236 |
250 — 999 | 0.888 |
1,000 + | 0.47 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LIN Transceivers |
RoHS | Y |
Operating Supply Voltage | 4 V to 36 V |
Operating Supply Current | 1.2 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | VSON-14 |
Packaging | Reel |
Data Rate | 20 kb/s |
Product | LIN Transceivers |
Series | TLIN1022-Q1 |
Type | LIN Physical Layer Transceiver |
Brand | Texas Instruments |
Number of Channels | 2 Channel |
Development Kit | TLIN2029EVM |
Moisture Sensitive | Yes |
Number of Drivers | 2 Driver |
Number of Receivers | 2 Receiver |
Product Type | LIN Transceivers |
Propagation Delay Time | 6 us |
Standard | LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, ISO/DIS 17987-4.2 |
Factory Pack Quantity | 250 |
Subcategory | Interface ICs |
Supply Voltage - Max | 36 V |
Supply Voltage - Min | 4 V |
Unit Weight | 0.001316 oz |
For more information, please refer to datasheet
Documents
TLIN1022DMTTQ1 Datasheet |
More Information
The TLIN1022-Q1 is a Dual Local Interconnect Network (LIN) physical layer transceiver with integrated wake-up and protection features, complaint to LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A and ISO/DIS 17987–4.2 standards. LIN is a single wire bidirectional bus typically used for low speed in-vehicle networks using data rates up to 20 kbps. The TLIN1022-Q1 is designed to support 12 V applications with wider operating voltage and additional bus-fault protection. The LIN receiver supports data rates up to 100 kbps for in-line programming. The TLIN1022-Q1 converts the LIN protocol data stream on the TXD input into a LIN bus signal using a current-limited wave-shaping driver which reduces electromagnetic emissions (EME). The receiver converts the data stream to logic level signals that are sent to the microprocessor through the open-drain RXD pin. Ultra-low current consumption is possible using the sleep mode which allows wake-up via LIN bus or pin.
