TLIN14415DMTTQ1


YeeHing #: Y007-TLIN14415DMTTQ1
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TLIN14415DMTTQ1 Texas Instruments - Yeehing Electronics

Automotive local interconnect network transceiver with integrated voltage regulator and watchdog

Pricing (USD)

Quantity Unit Price
1 — 99 1.926
100 — 249 1.591
250 — 999 1.143
1,000 + 0.50

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Minimum Operating Temperature -40
Maximum Operating Temperature 125
Factory Pack Quantity 250

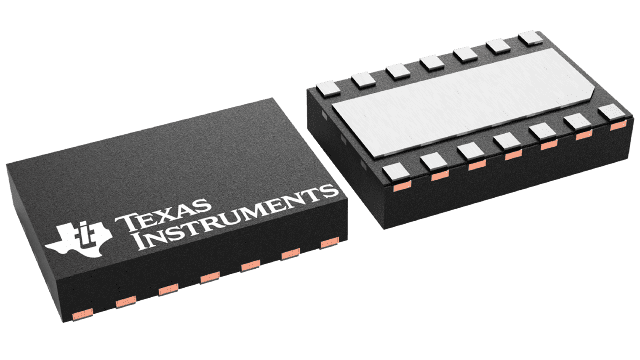

Package | Pins VSON (DMT) | 14

For more information, please refer to datasheet

Documents

TLIN14415DMTTQ1 Datasheet

More Information

The TLIN1441-Q1 is a local interconnect network (LIN) physical layer transceiver, compliant to LIN 2.2A and ISO/DIS 17987–4 standards, with an integrated low dropout (LDO) voltage regulator and watchdog. The TLIN1441-Q1 watchdog can operate in window or timeout mode and can be controlled by pins or SPI. The Pin or SPI control is established at power up by the state of pin 9 (that is, High, Z-State, Low).
