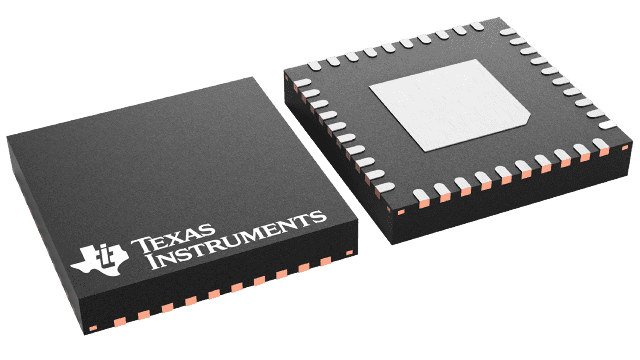

TLK1221RHAT Texas Instruments - Yeehing Electronics
Gigabit Ethernet SerDes in small 40-pin package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.848 |
| 100 — 249 | 6.398 |
| 250 — 999 | 5.028 |
| 1,000 + | 2.99 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Ethernet ICs |
| RoHS | Y |
| Series | TLK1221 |
| Product | Ethernet Transceivers |
| Number of Transceivers | 1 Transceiver |
| Data Rate | 0.6 Gb/s |
| Operating Supply Voltage | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Packaging | Reel |
| Height | 0.9 mm |
| Length | 6 mm |
| Width | 6 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 113 mA |
| Development Kit | TLK1221EVM |
| Moisture Sensitive | Yes |
| Product Type | Ethernet ICs |
| Factory Pack Quantity | 250 |
| Subcategory | Communication & Networking ICs |
| Supply Voltage - Max | 2.7 V |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
| TLK1221RHAT Datasheet |
More Information
The TLK1221 gigabit Ethernet transceiver provides for high-speed full-duplex point-to-point data transmissions. These devices are based on the timing requirements of the 10-bit interface specification by the IEEE 802.3 Gigabit Ethernet specification. The TLK1221 supports data rates from 0.6 Gbps through 1.3 Gbps.
