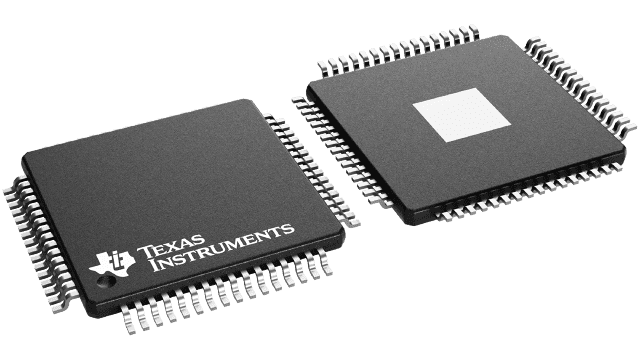

TLK1501IRCP Texas Instruments - Yeehing Electronics

0.6 to 1.5-Gbps transceiver

Pricing (USD)

Quantity	Unit Price
1 — 99	20.893
100 — 249	18.25
250 — 999	14.071
1,000 +	8.81

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Ethernet ICs
RoHS	Y
Series	TLK1501
Product	Ethernet Transceivers
Number of Transceivers	1 Transceiver
Data Rate	0.6 Gb/s
Operating Supply Voltage	2.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HVQFP-64
Packaging	Tray
Height	0.8 mm
Length	10 mm
Width	10 mm
Brand	Texas Instruments
Supply Current - Max	100 mA
Development Kit	TLK1501EVM
Moisture Sensitive	Yes
Product Type	Ethernet ICs
Factory Pack Quantity	160
Subcategory	Communication & Networking ICs
Supply Voltage - Max	2.7 V
Supply Voltage - Min	2.3 V
Unit Weight	0.008004 oz

For more information, please refer to datasheet

Documents

TLK1501IRCP Datasheet

More Information

The TLK1501 is a member of the transceiver family of multigigabit transceivers used in ultrahigh-speed bidirectional point-to-point data transmission systems. The TLK1501 supports an effective serial interface speed of 0.6 Gbps to 1.5 Gbps, providing up to 1.2 Gbps of data bandwidth. The TLK1501 is pin-for-pin compatible with the TLK2500. The TLK1501 is both pin-for-pin compatible with and functionally identical to the TLK2501, a 1.6 to 2.5 Gbps transceiver, and the TLK3101, a 2.5 to 3.125 Gbps transceiver, providing a wide range of performance solutions with no required board layout changes.
