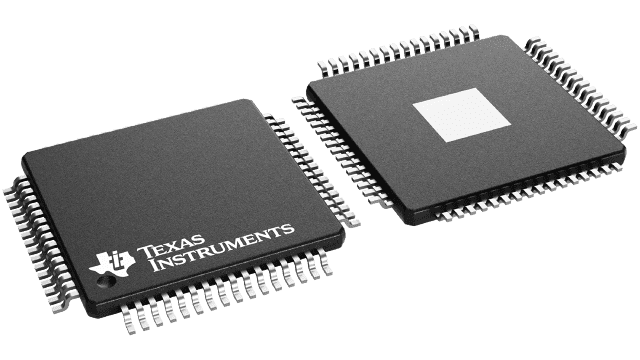

TLK2201BRCP Texas Instruments - Yeehing Electronics

1.0 to 1.6-Gb Ethernet transceiver

Pricing (USD)

Quantity	Unit Price
1 — 99	10.224
100 — 249	8.931
250 — 999	6.886
1,000 +	4.31

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Ethernet ICs
RoHS	Y
Series	TLK2201B
Product	Ethernet Transceivers
Number of Transceivers	1 Transceiver
Data Rate	1.2 Gb/s
Operating Supply Voltage	2.5 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	HVQFP-64
Packaging	Tray
Height	0.8 mm
Length	10 mm
Width	10 mm
Brand	Texas Instruments
Supply Current - Max	111 mA
Moisture Sensitive	Yes
Product Type	Ethernet ICs
Factory Pack Quantity	160
Subcategory	Communication & Networking ICs
Supply Voltage - Max	2.7 V
Supply Voltage - Min	2.3 V
Unit Weight	0.008004 oz

For more information, please refer to datasheet

Documents

TLK2201BRCP Datasheet

More Information

The TLK2201B and TLK2201BI gigabit ethernet transceivers provide for ultrahigh-speed full-duplex point-to-point data transmissions. These devices are based on the timing requirements of the 10-bit interface specification by the IEEE 802.3 Gigabit Ethernet specification. The TLK2201B supports data rates from 1.0 Gbps through 1.6 Gbps and the TLK2201BI supports data rates from 1.2 Gbps through 1.6 Gbps.
