Texas Instruments
TLK2501IRCPR
TLK2501IRCPR
Regular price
$10.14 USD
Regular price
Sale price
$10.14 USD
Unit price
per
Couldn't load pickup availability

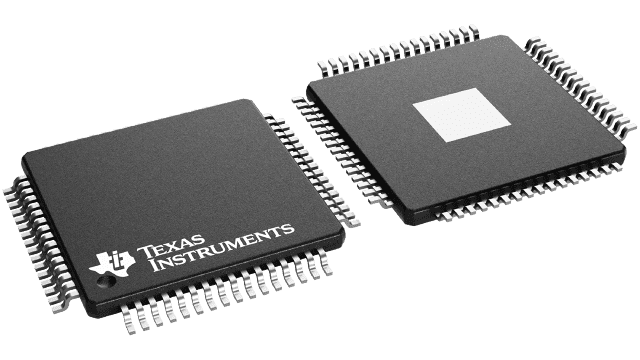

TLK2501IRCPR Texas Instruments - Yeehing Electronics
1.5 to 2.5-Gbps transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 21.049 |
| 100 — 249 | 18.386 |
| 250 — 999 | 14.176 |
| 1,000 + | 10.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Ethernet ICs |
| RoHS | Y |
| Series | TLK2501 |
| Product | Ethernet Transceivers |
| Number of Transceivers | 1 Transceiver |
| Data Rate | 1.5 Gb/s |
| Operating Supply Voltage | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HVQFP-64 |
| Packaging | Reel |
| Height | 0.8 mm |
| Length | 10 mm |
| Width | 10 mm |
| Brand | Texas Instruments |
| Supply Current - Max | 145 mA |
| Development Kit | TLK2501EVM |
| Moisture Sensitive | Yes |
| Product Type | Ethernet ICs |
| Factory Pack Quantity | 1000 |
| Subcategory | Communication & Networking ICs |
| Supply Voltage - Max | 2.7 V |
| Supply Voltage - Min | 2.3 V |
| Unit Weight | 0.008004 oz |
For more information, please refer to datasheet
Documents
| TLK2501IRCPR Datasheet |
More Information
The TLK2501 is a member of the transceiver family of multigigabit transceivers used in ultrahigh-speed bidirectional point-to-point data transmission systems. The TLK2501 supports an effective serial interface speed of 1.5 Gbps to 2.5 Gbps, providing up to 2 Gbps of data bandwidth. The TLK2501 is pin-for-pin compatible with the TLK2500. The TLK2501 is both pin-for-pin compatible with and functionally identical to the TLK1501, a 0.6 to 1.5 Gbps transceiver, and the TLK3101, a 2.5 to 3.125 Gbps transceiver, providing a wide range of performance solutions with no required board layout changes.
