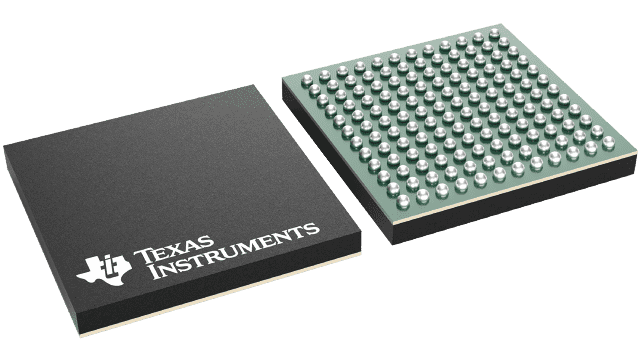

TLK3131ZWQ Texas Instruments - Yeehing Electronics
1-channel 600-Mbps to 3.75-Gbps multi-rate transceiver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 16.872 |
100 — 249 | 14.738 |
250 — 999 | 11.363 |
1,000 + | 7.11 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Ethernet ICs |
RoHS | Y |
Series | TLK3131 |
Product | Ethernet Transceivers |
Number of Transceivers | 1 Transceiver |
Data Rate | 0.6 Gb/s |
Operating Supply Voltage | 1.2 V, 1.5 V, 1.8 V, 2.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | BGA-144 |
Packaging | Tray |
Height | 1.26 mm |
Length | 13 mm |
Width | 13 mm |
Brand | Texas Instruments |
Supply Current - Max | 22 mA, 26 mA, 98 mA, 122 mA, 172 mA, 210 mA |
Development Kit | TLK3131EVM |
Moisture Sensitive | Yes |
Product Type | Ethernet ICs |
Standard | 1000BASE-X |
Factory Pack Quantity | 160 |
Subcategory | Communication & Networking ICs |
Supply Voltage - Max | 1.26 V, 1.9 V, 2.63 V |
Supply Voltage - Min | 1.14 V, 1.4 V, 2.37 V |
Unit Weight | 0.015757 oz |
For more information, please refer to datasheet
Documents
TLK3131ZWQ Datasheet |
More Information
The TLK3131 is a flexible single channel configurable serial transceiver. It can be configured to be compliant with the 1000Base-X 1Gbps Ethernet Specification (Auto-Negotiation not supported). The TLK3131 provides high-speed bi-directional point-to-point data transmissions with up to 7.5 Gbps of raw data transmission capacity. The primary application of this device is in backplanes and front panel connections requiring 3.75Gbps connections over controlled impedance media of approximately 50. The transmission media can be printed circuit board (PCB) traces, copper cables or fiber-optical media. The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media and the noise coupling into the lines.
