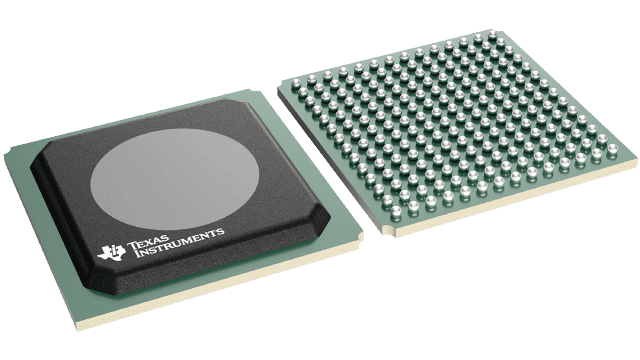

TLK3132ZEN


YeeHing #: Y007-TLK3132ZEN
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TLK3132ZEN Texas Instruments - Yeehing Electronics

2-channel 600-Mbps to 3.75-Gbps multi-rate transceiver

Pricing (USD)

Quantity Unit Price
1 — 99 20.652
100 — 249 18.039
250 — 999 13.909
1,000 + 8.71

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Ethernet ICs
RoHS Y
Series TLK3132
Product Ethernet Transceivers
Number of Transceivers 2 Transceiver
Data Rate 0.6 Gb/s
Operating Supply Voltage 1.2 V, 1.5 V, 1.8 V, 2.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case BGA-196
Packaging Tray
Height 1.36 mm
Length 15 mm
Width 15 mm
Brand Texas Instruments
Supply Current - Max 30 mA, 100 mA, 176 mA, 262 mA, 360 mA
Development Kit TLK3132EVM
Moisture Sensitive Yes
Product Type Ethernet ICs
Standard 1000BASE-X
Factory Pack Quantity 126
Subcategory Communication & Networking ICs
Supply Voltage - Max 1.26 V, 1.9 V, 2.63 V
Supply Voltage - Min 1.14 V, 1.4 V, 2.37 V

For more information, please refer to datasheet

Documents

TLK3132ZEN Datasheet

More Information

The TLK3132 is a flexible two channel independently configurable serial transceiver. It can be configured to be compliant with the 1000Base-X 1Gbps Ethernet Specification (Auto-Negotiation not supported). The TLK3132 provides high-speed bi-directional point-to-point data transmissions with up to 15 Gbps of raw data transmission capacity. The primary application of this device is in backplanes and front panel connections requiring 3.75Gbps connections over controlled impedance media of approximately 50. The transmission media can be printed circuit board (PCB) traces, copper cables or fiber-optical media. The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media and the noise coupling into the lines.
