Texas Instruments

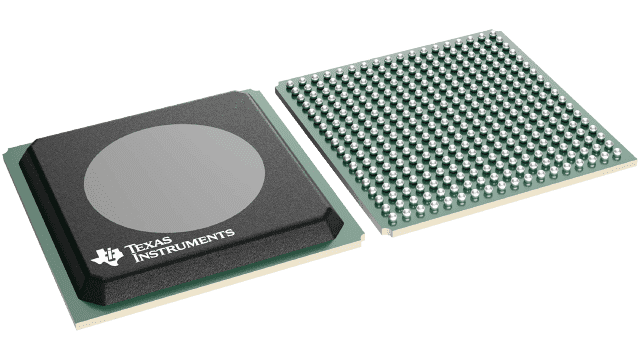

TLK6002ZEU
TLK6002ZEU
Regular price
$13.55 USD
Regular price
Sale price
$13.55 USD
Unit price
per
Couldn't load pickup availability
TLK6002ZEU Texas Instruments - Yeehing Electronics
Dual channel 470-Mbps to 6.25-Gbps multi-rate transceiver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 29.621 |
| 100 — 249 | 26.33 |
| 250 — 999 | 21.644 |
| 1,000 + | 13.55 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Ethernet ICs |
| RoHS | Y |
| Series | TLK6002 |
| Product | Ethernet Transceivers |
| Number of Transceivers | 2 Transceiver |
| Data Rate | 6.25 Gb/s |
| Interface Type | JTAG, Serial |
| Operating Supply Voltage | 1 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-324 |
| Packaging | Tray |
| Brand | Texas Instruments |
| Supply Current - Max | 250 mA |
| Development Kit | TLK6002EVM |
| Moisture Sensitive | Yes |
| Product Type | Ethernet ICs |
| Factory Pack Quantity | 84 |
| Subcategory | Communication & Networking ICs |
| Supply Voltage - Max | 1.05 V |
| Supply Voltage - Min | 950 mV |
| Unit Weight | 0.061655 oz |
For more information, please refer to datasheet
Documents
| TLK6002ZEU Datasheet |
More Information
The TLK6002 is a member of a portfolio of multi-gigabit transceivers, intended for use in ultra-high-speed bi-directional point-to-point data transmission systems. It is specifically intended for base station RRH (Remote Radio Head) application, but may also be used in other high speed applications. The TLK6002 supports a serial interface speed of 0.470 Gbps to 6.25 Gbps. Rate support includes all the CPRI and OBSAI rates (0.6144/0.768/1.2288/1.536/2.4576/3.072/4.9152/6.144 Gbps) using a single fixed reference clock frequency (either 122.88 MHz or 153.6 MHz).
