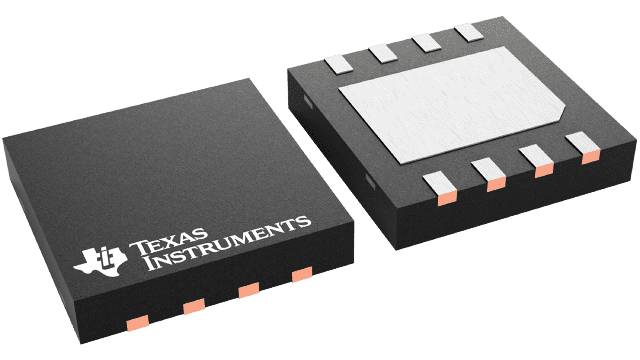

TLV1117-50CDRJR Texas Instruments - Yeehing Electronics

800-mA, 15-V, linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.425
100 — 249	1.177
250 — 999	0.845
1,000 +	0.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-8
Output Voltage	5 V
Output Current	800 mA
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	10 mA
Input Voltage MAX	15 V
Input Voltage MIN	6.4 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	1.2 V
Series	TLV1117-50
Packaging	Reel
Height	0.67 mm
Length	4 mm
Operating Temperature Range	- 40 C to + 125 C
Width	4 mm
Brand	Texas Instruments
Dropout Voltage - Max	1.3 V at 100 mA/1.35 V at 500 mA/1.4 V at 800 mA
Ib - Input Bias Current	5 mA
Line Regulation	0.2 %
Load Regulation	0.4 %
Moisture Sensitive	Yes
Operating Supply Current	80 uA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

TLV1117-50CDRJR Datasheet

More Information

The TLV1117 device is a positive low-dropout voltage regulator designed to provide up to 800 mA of output current. The device is available in 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable-output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents.
