Texas Instruments

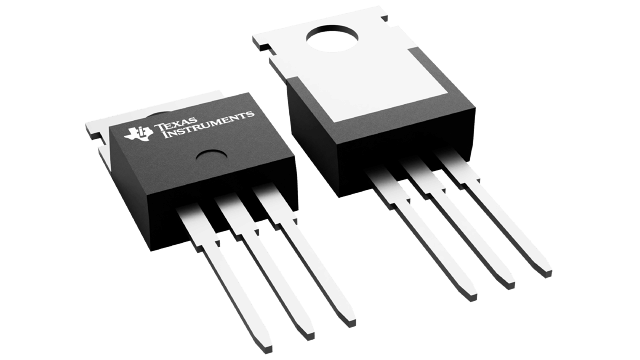

TLV1117CKCT
TLV1117CKCT
Regular price
$0.15 USD
Regular price
Sale price
$0.15 USD
Unit price
per
Couldn't load pickup availability
TLV1117CKCT Texas Instruments - Yeehing Electronics
800-mA, 15-V, linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.524 |
| 100 — 249 | 0.403 |
| 250 — 999 | 0.297 |
| 1,000 + | 0.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-3 |
| Output Voltage | Adj |
| Output Current | 800 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 15 V |
| Input Voltage MIN | 2.7 V |
| Output Type | Adjustable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 1.2 V |
| Series | TLV1117 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 1.3 V |
| PSRR / Ripple Rejection - Typ | 75 dB |
| Line Regulation | 0.2 % |
| Load Regulation | 0.2 % |
| Operating Supply Current | 80 uA |
| Product Type | LDO Voltage Regulators |
| Reference Voltage | 1.25 V |
| Factory Pack Quantity | 50 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.211644 oz |
For more information, please refer to datasheet
Documents
| TLV1117CKCT Datasheet |
More Information
The TLV1117 device is a positive low-dropout voltage regulator designed to provide up to 800 mA of output current. The device is available in 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable-output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents.
