Description

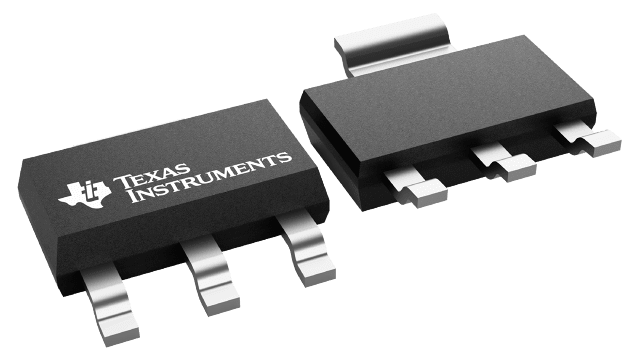

TLV117118DCYT Texas Instruments - Yeehing Electronics
1-A, low-dropout voltage regulator (tab GND)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.632 |
| 100 — 249 | 0.486 |
| 250 — 999 | 0.358 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-223-4 |
| Output Voltage | 1.8 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 2 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 455 mV |
| Series | TLV117118 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 29 dB |
| Line Regulation | 1 V |
| Load Regulation | 1 mV |
| Operating Supply Current | 50 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.003951 oz |
For more information, please refer to datasheet
Documents
| TLV117118DCYT Datasheet |
More Information
The TLV1171 low-dropout (LDO) linear regulator is a low input voltage version of the popular 1117 voltage regulator.
