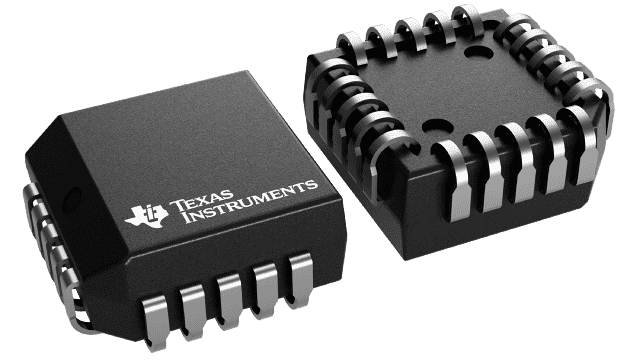

TLV1543CFN Texas Instruments - Yeehing Electronics
10-Bit 200 kSPS ADC Ser. Out, Built-In Self-Test Modes, Inherent S&H, Pin Compat. w/TLC1543, 11 Ch.
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.959 |
100 — 249 | 4.043 |
250 — 999 | 3.177 |
1,000 + | 1.89 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | TLV1543 |
Mounting Style | SMD/SMT |
Package / Case | PLCC-20 |
Resolution | 10 bit |
Number of Channels | 11 Channel |
Sampling Rate | 38 kS/s |
Input Type | Single-Ended |
Interface Type | SPI |
Architecture | SAR |
Reference Type | External |
Analog Supply Voltage | 3 V to 5.5 V |
Digital Supply Voltage | 3 V to 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Tube |
Height | 4.06 mm |
Length | 8.96 mm |
Number of Converters | 1 Converter |
Power Consumption | 4 mW |
Width | 8.96 mm |
Brand | Texas Instruments |
DNL - Differential Nonlinearity | +/- 1 LSB |
INL - Integral Nonlinearity | +/- 1 LSB |
Operating Supply Voltage | 3 V to 5.5 V |
Product Type | ADCs - Analog to Digital Converters |
Factory Pack Quantity | 46 |
Subcategory | Data Converter ICs |
Unit Weight | 0.022716 oz |
For more information, please refer to datasheet
Documents
TLV1543CFN Datasheet |
More Information
The TLV1543C, TLV1543I, and TLV1543M are CMOS 10-bit, switched-capacitor, successive-approximation, analog-to-digital converters. These devices have three inputs and a 3-state output [chip select (CS), input-output clock (I/O CLOCK), address input (ADDRESS), and data output (DATA OUT)] that provide a direct 4-wire interface to the serial port of a host processor. The devices allow high-speed data transfers from the host.
