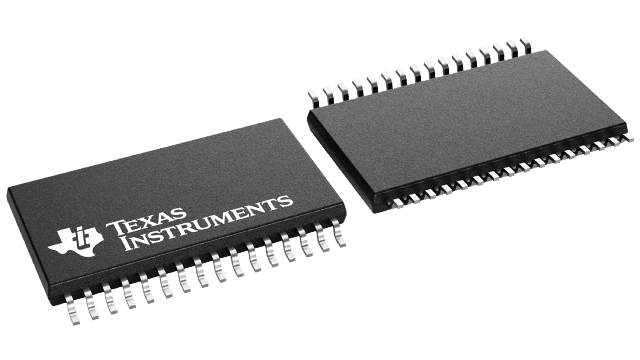

TLV1578CDAR Texas Instruments - Yeehing Electronics
8-Ch. 10-Bit 1.25 MSPS ADC 8-Ch., DSP/SPI, Hardware Configurable, Low Power
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.108 |
| 100 — 249 | 7.425 |
| 250 — 999 | 5.836 |
| 1,000 + | 3.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | TLV1578 |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-32 |
| Resolution | 10 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 1.25 MS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel |
| Architecture | SAR |
| Reference Type | External |
| Analog Supply Voltage | 2.7 V to 5.5 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| SNR - Signal to Noise Ratio | 60 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Oscillator |
| Height | 1.15 mm |
| Length | 11 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 12 mW |
| Width | 6.2 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 1 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Pd - Power Dissipation | 43 mW |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 60 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.006113 oz |
For more information, please refer to datasheet
Documents
| TLV1578CDAR Datasheet |
More Information
The TLV1571/1578 is a 10-bit data acquisition system that combines an 8-channel input multiplexer (MUX), a high-speed 10-bit ADC, and a parallel interface. The device contains two on-chip control registers allowing control of channel selection, software conversion start, and power down via the bidirectional parallel port. The control registers can be set to a default mode by applying a dummy RD signal when WR is tied low. This allows the TLV1571/1578 to be configured by hardware. The MUX is independently accessible. This allows the user to insert a signal conditioning circuit such as an antialiasing filter or an amplifier, if required, between the MUX and the ADC. Therefore, one signal conditioning circuit can be used for all eight channels. The TLV1571 is a single channel analog input device with all the same functions as the TLV1578.
