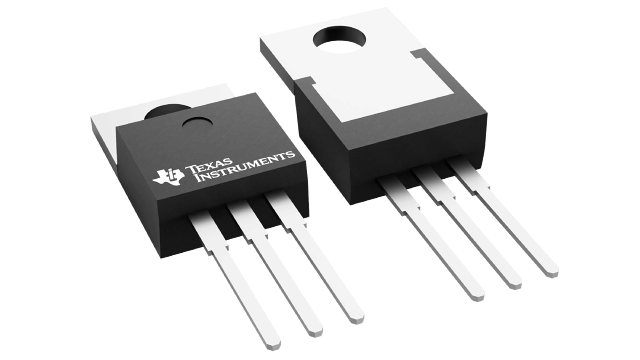

TLV2217-18KCS Texas Instruments - Yeehing Electronics
500-mA, 12-V, low-dropout voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.035 |
100 — 249 | 0.796 |
250 — 999 | 0.586 |
1,000 + | 0.29 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-220-3 |
Output Voltage | 1.8 V |
Output Current | 500 mA |
Number of Outputs | 1 Output |
Polarity | Positive |
Input Voltage MAX | 12 V |
Input Voltage MIN | 3 V |
Output Type | Fixed |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 500 mV |
Series | TLV2217-18 |
Packaging | Tube |
Height | 8.7 mm |
Length | 10.16 mm |
Operating Temperature Range | 0 C to + 125 C |
Width | 4.58 mm |
Brand | Texas Instruments |
Output Voltage Range | - |
Voltage Regulation Accuracy | 1 % |
Ib - Input Bias Current | 190 uA |
Line Regulation | 9 mV |
Load Regulation | 17 mV |
Operating Supply Current | 2 mA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 50 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.070548 oz |
For more information, please refer to datasheet
Documents
TLV2217-18KCS Datasheet |
More Information
The TLV2217 family of low-dropout regulators offers a variety of fixed-voltage options that offer a maximum continuous input voltage of 16 V, making them more versatile than CMOS regulators. Utilizing a PNP pass element, these regulators are capable of sourcing 500 mA of current, with a specified maximum dropout of 500 mV (3.3-V and 2.5-V options), making these regulators ideal for low-voltage applications. Additionally, the TLV2217 regulators offer very tight output accuracy of ±2% across operating load and temperature ranges. Other convenient features the regulators provide are internal overcurrent limiting, thermal-overload protection, and overvoltage protection. The TLV2217 family of regulators is available in fixed voltages of 1.8 V, 2.5 V, and 3.3 V.
