Texas Instruments

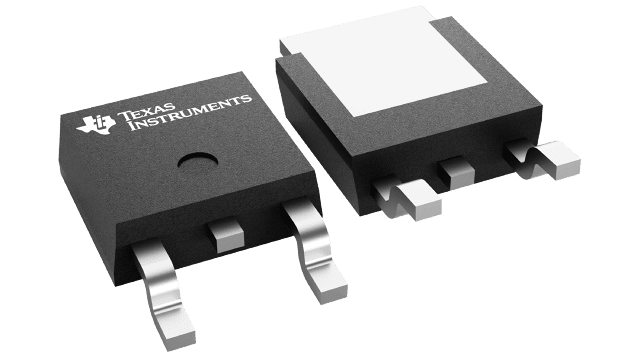

TLV2217-33KVURG3
TLV2217-33KVURG3
Couldn't load pickup availability
TLV2217-33KVURG3 Texas Instruments - Yeehing Electronics
500-mA, 12-V, low-dropout voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.126 |
| 100 — 249 | 0.866 |
| 250 — 999 | 0.638 |
| 1,000 + | 0.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-252-3 |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Input Voltage MAX | 12 V |
| Input Voltage MIN | 3 V |
| Output Type | Fixed |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 500 mV |
| Series | TLV2217-33 |
| Packaging | Reel |
| Height | 2.3 mm |
| Length | 6.6 mm |
| Operating Temperature Range | 0 C to + 125 C |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 400 mV at 250 mA |
| Output Voltage Range | - |
| Voltage Regulation Accuracy | 1 % |
| Ib - Input Bias Current | 290 uA |
| Line Regulation | 15 mV |
| Load Regulation | 30 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2 mA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.011598 oz |
For more information, please refer to datasheet
Documents
| TLV2217-33KVURG3 Datasheet |
More Information
The TLV2217 family of low-dropout regulators offers a variety of fixed-voltage options that offer a maximum continuous input voltage of 16 V, making them more versatile than CMOS regulators. Utilizing a PNP pass element, these regulators are capable of sourcing 500 mA of current, with a specified maximum dropout of 500 mV (3.3-V and 2.5-V options), making these regulators ideal for low-voltage applications. Additionally, the TLV2217 regulators offer very tight output accuracy of ±2% across operating load and temperature ranges. Other convenient features the regulators provide are internal overcurrent limiting, thermal-overload protection, and overvoltage protection. The TLV2217 family of regulators is available in fixed voltages of 1.8 V, 2.5 V, and 3.3 V.
