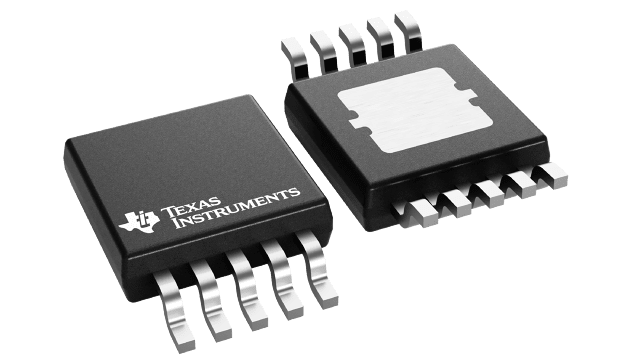

TLV2473IDGQR Texas Instruments - Yeehing Electronics

Dual, 6-V, 2.8-MHz, RRIO operational amplifier with shutdown

Pricing (USD)

Quantity	Unit Price
1 — 99	2.955
100 — 249	2.44
250 — 999	1.753
1,000 +	0.92

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Precision Amplifiers
RoHS	Y
Series	TLV2473
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	2.8 MHz
SR - Slew Rate	1.5 V/us
CMRR - Common Mode Rejection Ratio	64 dB to 84 dB
Output Current per Channel	35 mA
Ib - Input Bias Current	50 pA
Vos - Input Offset Voltage	2.2 mV
en - Input Voltage Noise Density	28 nV/sqrt Hz
Supply Voltage - Max	6 V
Supply Voltage - Min	2.7 V
Operating Supply Current	600 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Shutdown	Shutdown
Mounting Style	SMD/SMT
Package / Case	MSOP-PowerPad-10
Packaging	Reel
Amplifier Type	Rail to Rail Amplifier
Features	Shutdown
Height	1.02 mm
Input Type	Rail-to-Rail
Length	3 mm
Output Type	Rail-to-Rail
Product	Precision Amplifiers
Supply Type	Single, Dual
Technology	CMOS
Width	3 mm
Brand	Texas Instruments
THD plus Noise	0.3 %
Dual Supply Voltage	+/- 3 V
In - Input Noise Current Density	390 fA/sqrt Hz
Ios - Input Offset Current	50 pA
Maximum Dual Supply Voltage	+/- 3 V
Minimum Dual Supply Voltage	+/- 1.35 V
Operating Supply Voltage	2.7 V to 6 V, +/- 1.35 V to +/- 3 V
Pd - Power Dissipation	2.39 W
Product Type	Precision Amplifiers
Factory Pack Quantity	2500
Subcategory	Amplifier ICs
Unit Weight	0.000663 oz

For more information, please refer to datasheet

Documents

TLV2473IDGQR Datasheet

More Information

The TLV247x is a family of CMOS rail-to-rail input/ output operational amplifiers that establishes a new performance point for supply current versus ac performance. These devices consume just 600µA/channel while offering 2.8MHz of gain-bandwidth product. Along with increased ac performance, the amplifier provides high output drive capability, solving a major shortcoming of older micropower operational amplifiers. The TLV247x can swing to within 180mV of each supply rail while driving a 10mA load. For non-RRO applications, the TLV247x can supply ±35mA at 500mV off the rail. Both the inputs and outputs swing rail-to-rail for increased dynamic range in low-voltage applications. This performance makes the TLV247x family ideal for sensor interface, portable medical equipment, and other data acquisition circuits.
