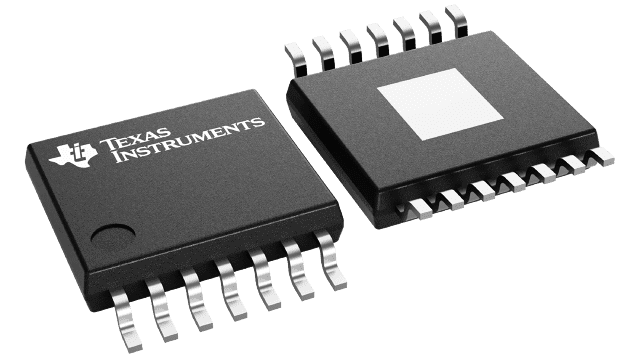

TLV2474QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive-grade, quad, 6-V, 2.8-MHz, RRIO operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.741 |
| 100 — 249 | 2.402 |
| 250 — 999 | 1.684 |
| 1,000 + | 2.67 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Precision Amplifiers |
| RoHS | Y |
| Series | TLV2474-Q1 |
| Number of Channels | 4 Channel |
| GBP - Gain Bandwidth Product | 2.8 MHz |
| SR - Slew Rate | 1.5 V/us |
| CMRR - Common Mode Rejection Ratio | 62 dB to 84 dB |
| Output Current per Channel | 35 mA |
| Ib - Input Bias Current | 50 pA |
| Vos - Input Offset Voltage | 2.2 mV |
| en - Input Voltage Noise Density | 28 nV/sqrt Hz |
| Supply Voltage - Max | 6 V |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 600 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-14 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Amplifier Type | Precision Amplifier |
| Height | 1.15 mm |
| Input Type | Rail-to-Rail |
| Length | 5 mm |
| Output Type | Rail-to-Rail |
| Product | Precision Amplifiers |
| Supply Type | Single, Dual |
| Technology | CMOS |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| THD plus Noise | 0.3 % |
| In - Input Noise Current Density | 390 fA/sqrt Hz |
| Ios - Input Offset Current | 50 pA |
| Maximum Dual Supply Voltage | +/- 3 V |
| Minimum Dual Supply Voltage | +/- 1.35 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 6 V, +/- 1.35 V to +/- 3 V |
| Pd - Power Dissipation | 4.07 W |
| Product Type | Precision Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.002028 oz |
For more information, please refer to datasheet
Documents
| TLV2474QPWPRQ1 Datasheet |
More Information
The TLV247x is a family of CMOS rail-to-rail input/output operational amplifiers that establishes a new performance point for supply current versus ac performance. These devices consume just 600 µA/channel while offering 2.8 MHz of gain-bandwidth product. Along with increased ac performance, the amplifier provides high output drive capability, solving a major shortcoming of older micropower operational amplifiers. The TLV247x can swing to within 180 mV of each supply rail while driving a 10-mA load. For non-RRO applications, the TLV247x can supply ±35 mA at 500 mV off the rail. Both the inputs and outputs swing rail-to-rail for increased dynamic range in low-voltage applications. This performance makes the TLV247x family ideal for sensor interface, portable medical equipment, and other data acquisition circuits.
