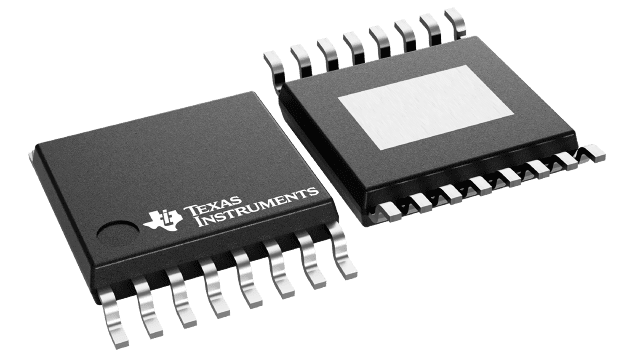

TLV2475CPWPR Texas Instruments - Yeehing Electronics

Quad, 6-V, 2.8-MHz operational amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	3.446
100 — 249	3.02
250 — 999	2.117
1,000 +	1.36

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	0
Maximum Operating Temperature	70
Factory Pack Quantity	2,000
Package | Pins	HTSSOP (PWP) | 16

For more information, please refer to datasheet

Documents

TLV2475CPWPR Datasheet

More Information

The TLV247x is a family of CMOS rail-to-rail input/ output operational amplifiers that establishes a new performance point for supply current versus ac performance. These devices consume just 600µA/channel while offering 2.8MHz of gain-bandwidth product. Along with increased ac performance, the amplifier provides high output drive capability, solving a major shortcoming of older micropower operational amplifiers. The TLV247x can swing to within 180mV of each supply rail while driving a 10mA load. For non-RRO applications, the TLV247x can supply ±35mA at 500mV off the rail. Both the inputs and outputs swing rail-to-rail for increased dynamic range in low-voltage applications. This performance makes the TLV247x family ideal for sensor interface, portable medical equipment, and other data acquisition circuits.
