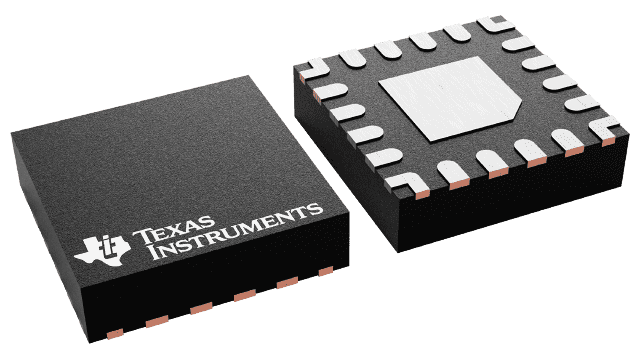

TLV320ADC5120IRTER


YeeHing #: Y002-TLV320ADC5120IRTER
Inventory: 2800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TLV320ADC5120IRTER Texas Instruments - Yeehing Electronics

Stereo-channel, 768-kHz, Burr-Brown™ audio analog-to-digital converter (ADC) with 120-dB SNR

Pricing (USD)

Quantity Unit Price
1 — 99 4.387
100 — 249 3.576
250 — 999 2.811
1,000 + 1.67

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TLV320ADC5120IRTER Datasheet

More Information

The TLV320ADC5120 is a Burr-Brown™ high-performance, audio analog-to-digital converter (ADC) that supports simultaneous sampling of up to two analog channels or four digital channels for the pulse density modulation (PDM) microphone input. The device supports line and microphone inputs, and allows for both single-ended and differential input configurations. The device integrates programmable channel gain, digital volume control, a programmable microphone bias voltage, a phase-locked loop (PLL), a programmable high-pass filter (HPF), biquad filters, low-latency filter modes, and allows for sample rates up to 768 kHz, and allows for sample rates up to 192 kHz. The device supports time-division multiplexing (TDM), I2S, or left-justified (LJ) audio formats, and can be controlled with the I2C interface. These integrated high-performance features, along with the ability to be powered from a single-supply of 3.3 V or 1.8 V, make the device an excellent choice for space-constrained audio systems in far-field microphone recording applications.
