Texas Instruments
TLV320AIC3212IYZFR
TLV320AIC3212IYZFR
Regular price
$2.07 USD
Regular price
Sale price
$2.07 USD
Unit price
per
Couldn't load pickup availability

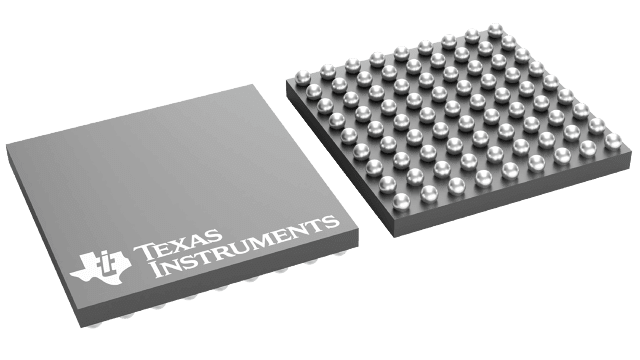

TLV320AIC3212IYZFR Texas Instruments - Yeehing Electronics
Low-Power Stereo CODEC With Integrated Class-D Speakers, Earpiece Driver, DirectPath™
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.435 |
| 100 — 249 | 4.431 |
| 250 — 999 | 3.483 |
| 1,000 + | 2.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - CODECs |
| RoHS | Y |
| Type | Audio CODEC, Stereo |
| Resolution | 32 bit |
| Conversion Rate | 192 kHz |
| Interface Type | Serial (I2C, SPI) |
| Number of ADCs | 2 ADC |
| Number of DACs | 2 DAC |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-81 |
| Packaging | Reel |
| Output Power | 2 W |
| Product | Audio CODECs |
| Series | TLV320AIC3212 |
| Brand | Texas Instruments |
| Development Kit | TLV320AIC3212EVM-U |
| Number of ADC Inputs | 2 Input |
| Number of DAC Outputs | 2 Output |
| Product Type | CODECs |
| SNR - Signal to Noise Ratio | 100 dB |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000945 oz |
For more information, please refer to datasheet
Documents
| TLV320AIC3212IYZFR Datasheet |
More Information
The TLV320AIC3212 (also referred to as the AIC3212) device is a flexible, highly-integrated, low-power, low-voltage stereo audio codec. The AIC3212 features digital microphone inputs and programmable outputs, PowerTune capabilities, selectable audio-processing blocks, predefined and parameterizable signal processing blocks, integrated PLL, and flexible audio interfaces. Extensive register-based control of power, input and output channel configuration, gains, effects, pin-multiplexing and clocks are included, allowing the device to be precisely targeted to its application.
