Texas Instruments

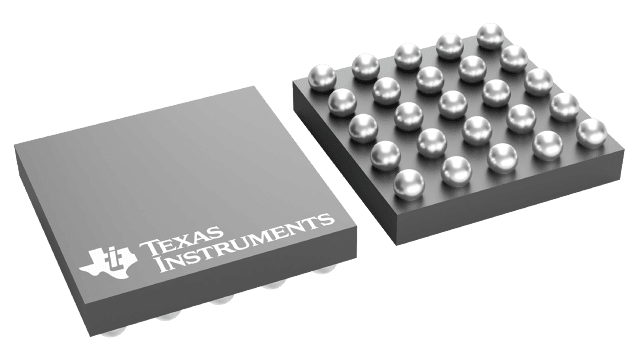

TLV320AIC3253IYZKR
TLV320AIC3253IYZKR
Regular price
$1.87 USD
Regular price
Sale price
$1.87 USD
Unit price
per
Couldn't load pickup availability
TLV320AIC3253IYZKR Texas Instruments - Yeehing Electronics
Ultra Low Power Stereo Audio Codec with miniDSP and Stereo Digital Microphone Input
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.924 |
| 100 — 249 | 4.014 |
| 250 — 999 | 3.155 |
| 1,000 + | 1.87 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - CODECs |
| RoHS | Y |
| Type | Audio CODEC, Stereo |
| Resolution | 32 bit |
| Conversion Rate | 48 kHz |
| Interface Type | Serial (I2C, SPI) |
| Number of ADCs | 2 ADC |
| Number of DACs | 2 DAC |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-25 |
| Packaging | Reel |
| Product | Audio CODECs |
| Series | TLV320AIC3253 |
| Brand | Texas Instruments |
| THD plus Noise | - 80 dB DAC |
| Development Kit | TLV320AIC3253EVM-K |
| Product Type | CODECs |
| SNR - Signal to Noise Ratio | 100 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| TLV320AIC3253IYZKR Datasheet |
More Information
The TLV320AIC3253 (sometimes referred to as the AIC3253) is a flexible, low-power, low-voltage stereo audio codec with digital microphone inputs and programmable outputs, PowerTune capabilities, fully-programmable miniDSP, fixed predefined and parameterizable signal processing blocks, integrated PLL, integrated LDO and flexible digital interfaces. Extensive register-based control of power, input/output channel configuration, gains, effects, pin-multiplexing and clocks is included, allowing the device to be precisely targeted to its application.
