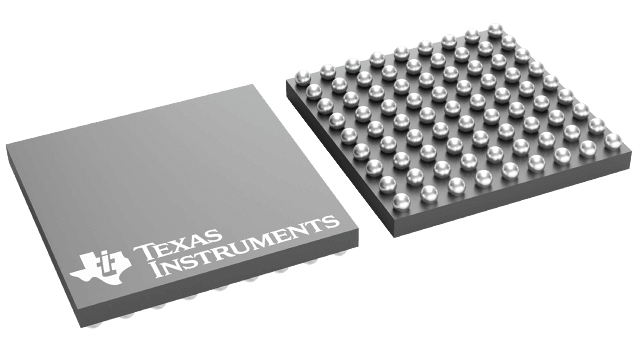

TLV320AIC3263IYZFT Texas Instruments - Yeehing Electronics

Low Power Stereo Audio Codec W/miniDSP, Class-D Speaker, DirectPath Headphone, 4 digital mic support

Pricing (USD)

Quantity	Unit Price
1 — 99	9.678
100 — 249	8.454
250 — 999	6.518
1,000 +	4.08

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Interface - CODECs
RoHS	Y
Type	Audio CODEC, Stereo
Resolution	32 bit
Conversion Rate	192 kHz
Interface Type	Serial (I2C, SPI)
Number of ADCs	2 ADC
Number of DACs	2 DAC
Operating Supply Voltage	2.7 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-81
Packaging	Reel
Output Power	2 W
Product	Audio CODECs
Series	TLV320AIC3263
Brand	Texas Instruments
THD plus Noise	- 88 dB ADC/- 92 dB DAC
Product Type	CODECs
SNR - Signal to Noise Ratio	101 dB
Factory Pack Quantity	250
Subcategory	Interface ICs
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Unit Weight	0.176370 oz

For more information, please refer to datasheet

Documents

TLV320AIC3263IYZFT Datasheet

More Information

The TLV320AIC3263 (also referred to as the AIC3263) is a flexible, highly-integrated, low-power, low-voltage stereo audio codec. The AIC3263 features four digital microphone inputs, plus programmable outputs, PowerTune capabilities, enhanced fully-programmable miniDSP, predefined and parameterizable signal processing blocks, integrated PLL, and flexible digital audio interfaces. Extensive register-based control of power, input and output channel configuration, gains, effects, pin-multiplexing and clocks are included, allowing the device to be precisely targeted to its application.
