Texas Instruments

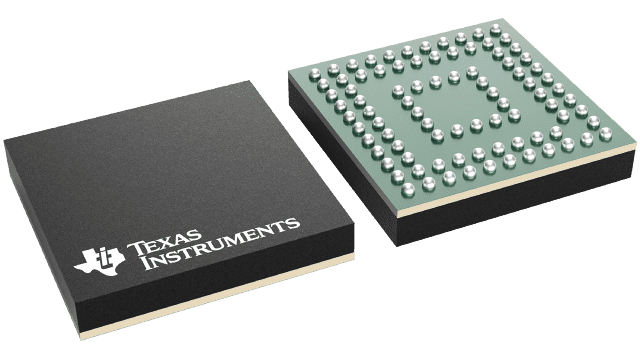

TLV320AIC34IZAS
TLV320AIC34IZAS
Regular price
$3.11 USD
Regular price
Sale price
$3.11 USD
Unit price
per
Couldn't load pickup availability
TLV320AIC34IZAS Texas Instruments - Yeehing Electronics
Low-power 4-channel CODEC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.166 |
| 100 — 249 | 6.657 |
| 250 — 999 | 5.232 |
| 1,000 + | 3.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - CODECs |
| RoHS | Y |
| Type | Audio CODEC, Low Power |
| Resolution | 24 bit |
| Conversion Rate | 96 kHz |
| Interface Type | Serial (I2C) |
| Number of ADCs | 4 ADC |
| Number of DACs | 4 DAC |
| Operating Supply Voltage | 2.4 V to 3.6 V, 1.525 V to 1.95 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-87 |
| Packaging | Tray |
| Height | 0.64 mm |
| Length | 6 mm |
| Output Power | 500 mW |
| Product | Audio CODECs |
| Series | TLV320AIC34 |
| Width | 6 mm |
| Brand | Texas Instruments |
| Development Kit | TLV320AIC34EVM-K |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 12 Input |
| Number of DAC Outputs | 8 Output |
| Product Type | CODECs |
| SNR - Signal to Noise Ratio | 100 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.002734 oz |
For more information, please refer to datasheet
Documents
| TLV320AIC34IZAS Datasheet |
More Information
The TLV320AIC34 device is a low-power four-channel audio codec with four-channel headphone amplifier, as well as multiple inputs and outputs programmable in single-ended or fully differential configurations. Extensive register-based power control is included, enabling four-channel 48-kHz DAC playback as low as 15 mW from a 3.3-V analog supply, making it ideal for portable battery-powered audio and telephony applications.
