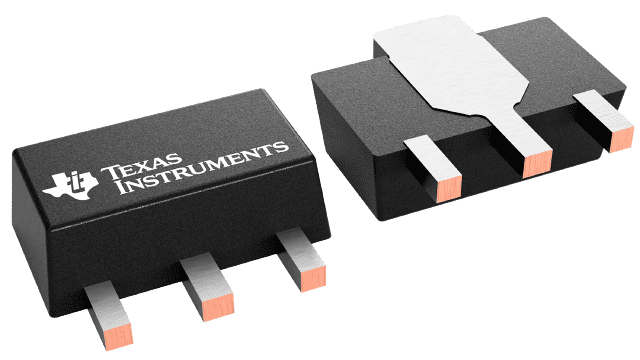

TLV431BQPK Texas Instruments - Yeehing Electronics

0.5% accuracy, low-voltage, adjustable precision shunt regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	0.504
100 — 249	0.388
250 — 999	0.285
1,000 +	0.14

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TLV431BQPK Datasheet

More Information

The TLV431 device is a low-voltage 3-terminal adjustable voltage reference with specified thermal stability over applicable industrial and commercial temperature ranges. Output voltage can be set to any value between VREF (1.24 V) and 6 V with two external resistors (see the Parameter Measurement Information section). These devices operate from a lower voltage (1.24 V) than the widely used TL431 and TL1431 shunt-regulator references.
