Description

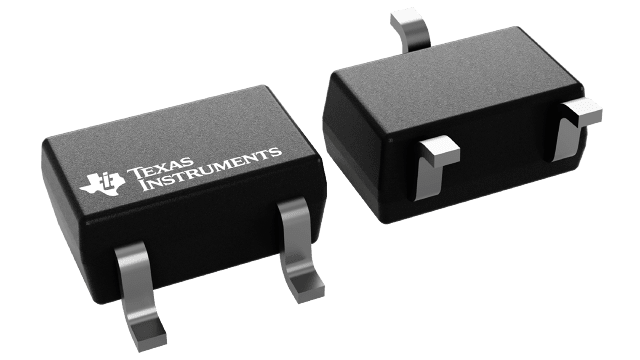

TLV6001IDCKT Texas Instruments - Yeehing Electronics
Single, 5.5-V, 1-MHz, RRIO operational amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.748 |
100 — 249 | 0.576 |
250 — 999 | 0.424 |
1,000 + | 0.21 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SC70-5 |
Supply Voltage - Max | 5.5 V |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 1 MHz |
SR - Slew Rate | 0.5 V/us |
CMRR - Common Mode Rejection Ratio | 60 dB to 76 dB |
Ib - Input Bias Current | 1 pA |
Vos - Input Offset Voltage | 4.5 mV |
Operating Supply Current | 75 uA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TLV6001 |
Packaging | Reel |
Amplifier Type | Operational Ampifier |
Features | Cost Optimized, EMI Hardened, Small Size |
Input Type | Rail-to-Rail |
Output Type | Rail-to-Rail |
Product | Operational Amplifiers |
Brand | Texas Instruments |
Ios - Input Offset Current | 1 pA |
Product Type | Op Amps - Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 86 dB |
Factory Pack Quantity | 250 |
Subcategory | Amplifier ICs |
Unit Weight | 0.000705 oz |
For more information, please refer to datasheet
Documents
TLV6001IDCKT Datasheet |
More Information
The TLV600x family of single-, dual-, and quad-channel operational amplifiers is specifically designed for general-purpose applications. Featuring rail-to-rail input and output (RRIO) swings, low quiescent current (75 µA, typical), wide bandwidth (1 MHz) and low noise (28 nV/√Hz at 1 kHz), this family is attractive for a variety of applications that require a good balance between cost and performance, such as consumer electronics, smoke detectors, and white goods. The low-input-bias current (±1.0 pA, typical) enables the TLV600x to be used in applications with megaohm source impedances.
