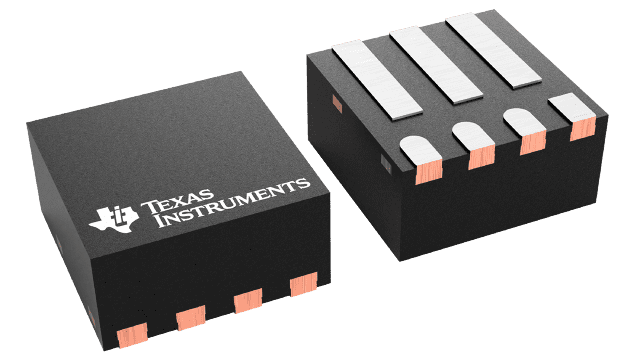

TLV62085RLTT Texas Instruments - Yeehing Electronics

3-A High Efficiency Step-Down Converter in 2x2 QFN

Pricing (USD)

Quantity	Unit Price
1 — 99	0.958
100 — 249	0.737
250 — 999	0.543
1,000 +	0.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Output Voltage	800 mV to 6 V
Output Current	3 A
Number of Outputs	1 Output
Input Voltage MAX	6 V
Topology	Buck
Input Voltage MIN	2.5 V
Switching Frequency	2.4 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TLV62085
Packaging	Reel
Input Voltage	2.5 V to 6 V
Operating Temperature Range	- 40 C to + 125 C
Type	Synchronous Step Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Operating Supply Current	17 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.5 V
Unit Weight	0.000310 oz

For more information, please refer to datasheet

Documents

TLV62085RLTT Datasheet

More Information

The TLV62085 device is a high-frequency synchronous step-down converter optimized for small solution size and high efficiency. With an input voltage range of 2.5 V to 6.0 V, common battery technologies are supported. The devices focus on high-efficiency step-down conversion over a wide output current range. At medium to heavy loads, the converter operates in PWM mode and automatically enters Power Save Mode operation at light load to maintain high efficiency over the entire load current range.
