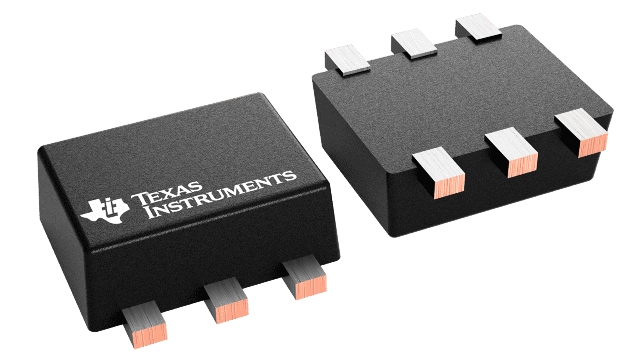

TLV62569APDRLR Texas Instruments - Yeehing Electronics

2A High Efficiency Step-down Buck Converter with forced PWM in SOT Package

Pricing (USD)

Quantity	Unit Price
1 — 99	0.152
100 — 249	0.103
250 — 999	0.08
1,000 +	0.04

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOT-5X3-6
Output Voltage	0.6 V to 5.5 V
Output Current	2 A
Number of Outputs	1 Output
Input Voltage MAX	5.5 V
Topology	Buck
Input Voltage MIN	2.5 V
Switching Frequency	1.5 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TLV62569
Packaging	Reel
Input Voltage	2.5 V to 5.5 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	0.035 mA
Type	Step-Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	TLV62569APEVM-860
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.5 V

For more information, please refer to datasheet

Documents

TLV62569APDRLR Datasheet

More Information

The TLV62568A, TLV62569A devices are synchronous step-down buck DC-DC converters optimized for high efficiency and compact solution size. The device integrates switches capable of delivering an output current up to 2 A. At the whole load range, the device operates in pulse width modulation (PWM) mode with 1.5-MHz switching frequency. In shutdown, the current consumption is reduced to less than 2 µA.
