TLV7081YKAR Texas Instruments - Yeehing Electronics
Nanopower micropackage low-voltage comparator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.459 |
| 100 — 249 | 0.312 |
| 250 — 999 | 0.241 |
| 1,000 + | 0.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Comparators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| Comparator Type | General Purpose |
| Number of Channels | 1 Channel |
| Output Type | Rail-to-Rail |
| Output Current per Channel | 45 mA |
| Ib - Input Bias Current | 10 pA |
| Vos - Input Offset Voltage | 10 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.7 V |
| Operating Supply Current | 370 nA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Product | Analog Comparators |
| Series | TLV7081 |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Development Kit | TLV7081EVM |
| Product Type | Analog Comparators |
| Propagation Delay Time | 4 us |
| PSRR - Power Supply Rejection Ratio | 75 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
| TLV7081YKAR Datasheet |
More Information

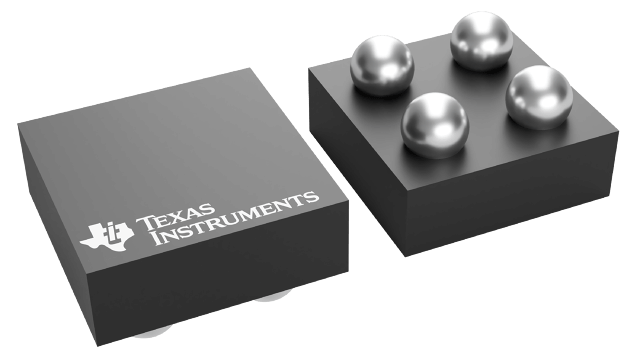

The TLV7081 is a single-channel, nano-power comparator that operates down to 1.7 V. The comparator is available in an ultra-small, WCSP package measuring 0.7 mm × 0.7 mm, making the TLV7081 applicable for space-critical designs like smartphones and other portable or battery-powered applications.
