Texas Instruments

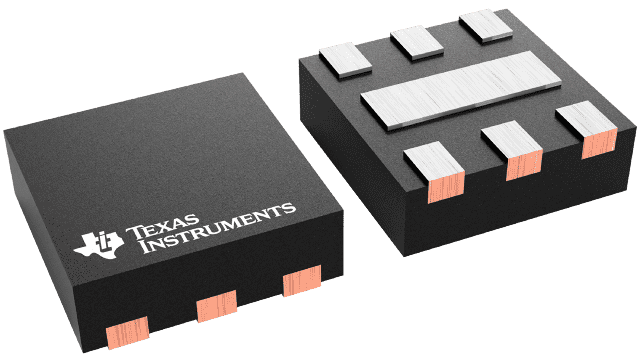

TLV7163318PDPQR
TLV7163318PDPQR
Regular price
$0.06 USD
Regular price
Sale price
$0.06 USD
Unit price
per
Couldn't load pickup availability
TLV7163318PDPQR Texas Instruments - Yeehing Electronics
150-mA, dual-channel low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.224 |
| 100 — 249 | 0.152 |
| 250 — 999 | 0.117 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | X2SON-6 |
| Output Voltage | 3.3 V, 1.8 V |
| Output Current | 150 mA |
| Number of Outputs | 2 Output |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 1.4 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 210 mV |
| Series | TLV7163318P |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Regulators |
| Type | Dual LDO Regulator |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 420 mV |
| PSRR / Ripple Rejection - Typ | 46 dB |
| Voltage Regulation Accuracy | 1.5 % |
| Line Regulation | 0.02 %/V |
| Load Regulation | 0.07 mV/mA |
| Operating Supply Current | 50 uA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000046 oz |
For more information, please refer to datasheet
Documents
| TLV7163318PDPQR Datasheet |
More Information
The TLV716 is a family of dual-channel, capacitor-free,150-mA, low-dropout (LDO) voltage regulators with multiple fixed-output options available from 1 V to 3.3 V. These devices provide an initial 1% accuracy and 1.5% accuracy overtemperature.
