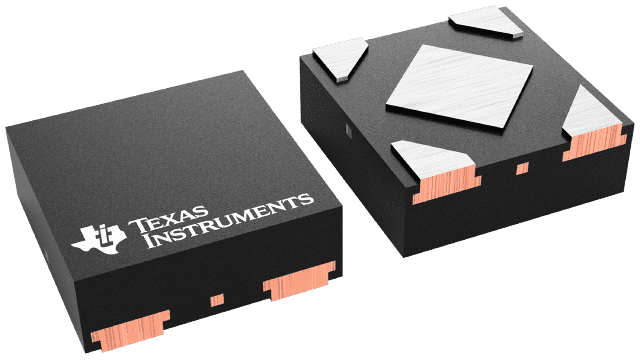

TLV75533PDQNT Texas Instruments - Yeehing Electronics
500-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.739 |
| 100 — 249 | 0.568 |
| 250 — 999 | 0.418 |
| 1,000 + | 0.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | X2SON-4 |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Quiescent Current | 25 uA |
| Input Voltage MAX | 5.5 V |
| Input Voltage MIN | 1.45 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 220 mV |
| Series | TLV755P |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LDO Voltage Regulators |
| Type | Low Quiescent Current, Ultra Small |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 215 mV |
| Output Voltage Range | - |
| PSRR / Ripple Rejection - Typ | 46 dB |
| Voltage Regulation Accuracy | 1.5 % |
| Line Regulation | 2 mV |
| Load Regulation | 0.036 V/A |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000039 oz |
For more information, please refer to datasheet
Documents
| TLV75533PDQNT Datasheet |
More Information
The TLV755P is an ultra-small, low quiescent current, low-dropout regulator (LDO) that sources 500 mA with good line and load transient performance. The TLV755P is optimized for a wide variety of applications by supporting an input voltage range from 1.45 V to 5.5 V. To minimize cost and solution size, the device is offered in fixed output voltages ranging from 0.6 V to 5 V to support the lower core voltages of modern microcontrollers (MCUs). Additionally, the TLV755P has a low IQ with enable functionality to minimize standby power. This device features an internal soft-start to lower inrush current, thus providing a controlled voltage to the load and minimizing the input voltage drop during start up. When shutdown, the device actively pulls down the output to quickly discharge the outputs and ensure a known start-up state.
