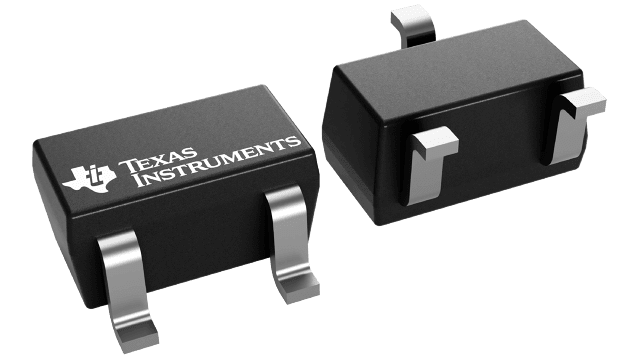

TLV809J25DBVT


YeeHing #: Y012-TLV809J25DBVT
Inventory: 2600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TLV809J25DBVT Texas Instruments - Yeehing Electronics

3-pin voltage supervisor (reset IC) with active-low, push-pull reset

Pricing (USD)

Quantity Unit Price
1 — 99 0.712
100 — 249 0.484
250 — 999 0.373
1,000 + 0.17

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Supervisory Circuits
RoHS Y
Type Voltage Supervisory
Mounting Style SMD/SMT
Package / Case SOT-23-3
Threshold Voltage 2.25 V
Number of Inputs Monitored 1 Input
Output Type Active-low,Push-pull
Manual Reset No Manual Reset
Watchdog Timers No Watchdog
Reset Delay Time 200 ms
Supply Voltage - Max 6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series TLV809J25
Packaging Reel
Operating Temperature Range - 40 C to + 85 C
Brand Texas Instruments
Product Type Supervisory Circuits
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 2 V
Unit Weight 0.000282 oz

For more information, please refer to datasheet

Documents

TLV809J25DBVT Datasheet

More Information

The TLV809 family of supervisory circuits provides circuit initialization and timing supervision, primarily for digital signal processors (DSPs) and processor-based systems. The newer TLV809E device is a pin-to-pin compatible alternative.
