Texas Instruments
TLV809K33DBVR
TLV809K33DBVR
Regular price
$0.12 USD
Regular price
Sale price
$0.12 USD
Unit price
per
Couldn't load pickup availability

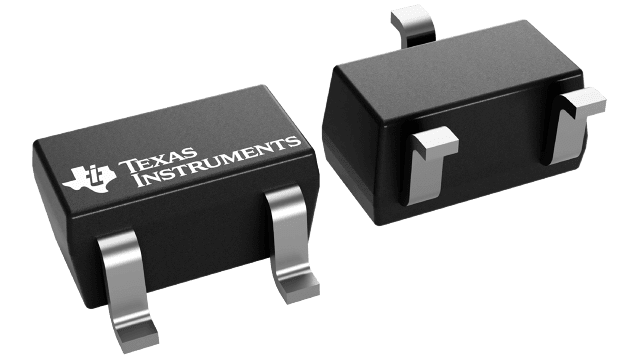

TLV809K33DBVR Texas Instruments - Yeehing Electronics
3-pin voltage supervisor (reset IC) with active-low, push-pull reset
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.591 |
| 100 — 249 | 0.402 |
| 250 — 999 | 0.31 |
| 1,000 + | 0.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Supervisory Circuits |
| RoHS | Y |
| Type | Voltage Supervisory |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-23-3 |
| Threshold Voltage | 2.93 V |
| Number of Inputs Monitored | 1 Input |
| Output Type | Active-low,Push-pull |
| Manual Reset | No Manual Reset |
| Watchdog Timers | No Watchdog |
| Battery Backup Switching | No Backup |
| Reset Delay Time | 200 ms |
| Supply Voltage - Max | 6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TLV809K33 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Current | 5 mA |
| Brand | Texas Instruments |
| Undervoltage Threshold | 2.93 V |
| Development Kit | TLV809KEVM-019 |
| Operating Supply Current | 9 uA |
| Product Type | Supervisory Circuits |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2 V |
| Unit Weight | 0.000282 oz |
For more information, please refer to datasheet
Documents
| TLV809K33DBVR Datasheet |
More Information
The TLV809 family of supervisory circuits provides circuit initialization and timing supervision, primarily for digital signal processors (DSPs) and processor-based systems. The newer TLV809E device is a pin-to-pin compatible alternative.
