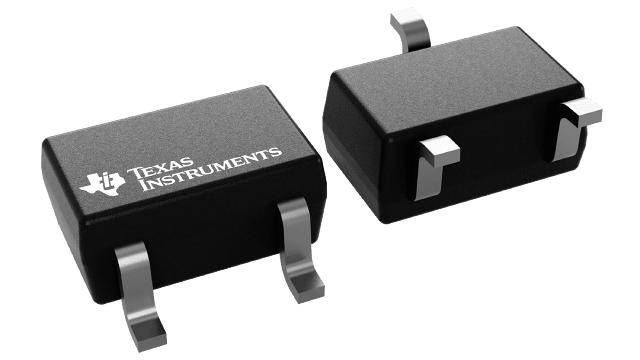

TLV9001IDCKR Texas Instruments - Yeehing Electronics
Single, 5.5-V, 1-MHz, RRIO operational amplifier for cost-optimized applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.23 |
| 100 — 249 | 0.156 |
| 250 — 999 | 0.12 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SC70-5 |
| Supply Voltage - Max | 5.5 V |
| Output Current per Channel | 40 mA |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 1 MHz |
| SR - Slew Rate | 2 V/us |
| CMRR - Common Mode Rejection Ratio | 63 dB to 95 dB |
| Ib - Input Bias Current | 5 pA |
| Vos - Input Offset Voltage | 1.6 mV |
| Supply Voltage - Min | 1.8 V |
| Operating Supply Current | 60 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | Shutdown |
| Series | TLV9001 |
| Packaging | Reel |
| Amplifier Type | General Purpose Operational Amplifier |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| THD plus Noise | 0.004 % |
| 3 dB Bandwidth | - |
| en - Input Voltage Noise Density | 27 nV/sqrt Hz |
| In - Input Noise Current Density | 23 fA/sqrt Hz |
| Ios - Input Offset Current | 2 pA |
| Maximum Dual Supply Voltage | +/- 2.75 V |
| Minimum Dual Supply Voltage | +/- 0.9 V |
| Moisture Sensitive | Yes |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 105 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.001693 oz |
For more information, please refer to datasheet
Documents
| TLV9001IDCKR Datasheet |
More Information
The TLV900x family includes single (TLV9001), dual (TLV9002), and quad-channel (TLV9004) low-voltage (1.8 V to 5.5 V) operational amplifiers (op amps) with rail-to-rail input and output swing capabilities. These op amps provide a cost-effective solution for space-constrained applications such as smoke detectors, wearable electronics, and small appliances where low-voltage operation and high capacitive-load drive are required. The capacitive-load drive of the TLV900x family is 500 pF, and the resistive open-loop output impedance makes stabilization easier with much higher capacitive loads. These op amps are designed specifically for low-voltage operation (1.8 V to 5.5 V) with performance specifications similar to the TLV600x devices.
