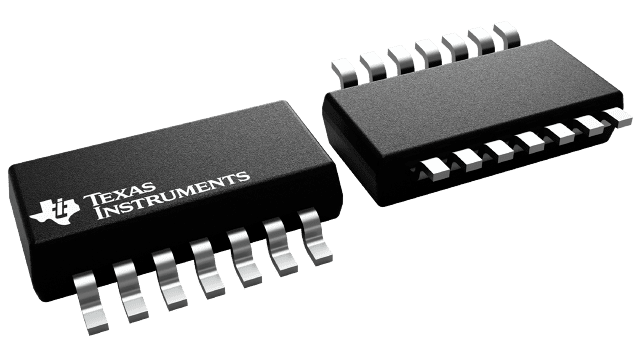

TLV9004QDYYRQ1 Texas Instruments - Yeehing Electronics

Automotive-grade, quad, 5.5-V, 1-MHz, RRIO operational amplifier for cost-optimized applications

Pricing (USD)

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

More Information

The TLV900x-Q1 family includes single (TLV9001-Q1), dual (TLV9002-Q1), and quad-channel (TLV9004-Q1) low-voltage (1.8 V to 5.5 V) operational amplifiers (op amps) with rail-to-rail input and output swing capabilities. These op amps provide a cost-effective solution for space-constrained automotive applications such as infotainment and lighting where low-voltage operation and high capacitive-load drive are required. The capacitive-load drive of the TLV900x-Q1 family is 500 pF, and the resistive open-loop output impedance makes stabilization easier with much higher capacitive loads. These op amps are designed specifically for low-voltage operation (1.8 V to 5.5 V) with performance specifications similar to the TLV600x-Q1 devices.
