Description

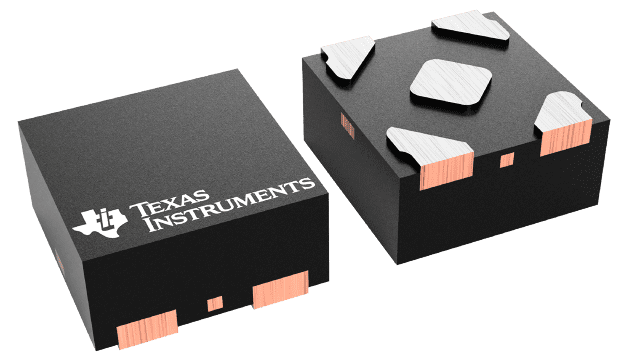

TLV9041IDPWR Texas Instruments - Yeehing Electronics
Single, 5.5-V, 350-kHz, ultra-low 1.2-V, low-quiescent current (10-μA) op amp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.482 |
| 100 — 249 | 0.328 |
| 250 — 999 | 0.253 |
| 1,000 + | 0.10 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TLV9041IDPWR Datasheet |
More Information
The low-power TLV904x family includes single (TLV9041), dual (TLV9042), and quad-channel (TLV9044) ultra-low-voltage (1.2 V to 5.5 V) operational amplifiers (op-amps) with rail-to-rail input and output swing capabilities. The TLV904x enables power savings both with its low quiescent current (10 µA, typ.) and the ability to operate at supply voltages as low as 1.2 V, making it one of the few amplifiers in the industry capable of 1.5-V coin cell applications. Further power savings can be achieved using the shutdown mode (TLV9041S, TLV9042S, and TLV9044S) that allows the amplifiers to be switched off and enter into a standby mode with typical current consumption of less than 150 nA. These devices offer a cost-effective amplifier solution for power and space-constrained applications such as battery-powered IoT devices, wearable electronics, and personal electronics where low-voltage operation is crucial.
