Texas Instruments
TLV9054IRUCR
TLV9054IRUCR
Regular price
$0.20 USD
Regular price
Sale price
$0.20 USD
Unit price
per
Couldn't load pickup availability

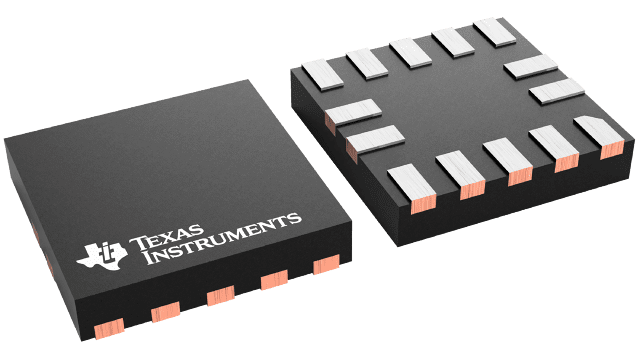

TLV9054IRUCR Texas Instruments - Yeehing Electronics
Quad, 5.5-V, 5-MHz, 15-V/μs slew rate, RRIO operational amplifier for cost-optimized applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.706 |
| 100 — 249 | 0.543 |
| 250 — 999 | 0.4 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-14 |
| Supply Voltage - Max | 5.5 V |
| Output Current per Channel | 50 mA |
| Number of Channels | 4 Channel |
| GBP - Gain Bandwidth Product | 5 MHz |
| SR - Slew Rate | 15 V/us |
| CMRR - Common Mode Rejection Ratio | 62 dB |
| Ib - Input Bias Current | 2 pA |
| Vos - Input Offset Voltage | 0.33 mV |
| Supply Voltage - Min | 1.8 V |
| Operating Supply Current | 330 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | Shutdown |
| Series | TLV9052 |
| Packaging | Reel |
| Amplifier Type | General Purpose |
| Input Type | Differential, Rail to Rail |
| Output Type | Rail to Rail |
| Product | RRIO Operational Amplifiers |
| Technology | CMOS |
| Brand | Texas Instruments |
| THD plus Noise | 0.0006 % |
| 3 dB Bandwidth | 80 kHz |
| en - Input Voltage Noise Density | 20 nv/sqrt Hz |
| In - Input Noise Current Density | 18 fA/sqrt Hz |
| Ios - Input Offset Current | 1 pA |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 100 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | 100 mV |
For more information, please refer to datasheet
Documents
| TLV9054IRUCR Datasheet |
More Information
The TLV9051, TLV9052, and TLV9054 devices are single, dual, and quad operational amplifiers, respectively. The devices are designed for low voltage operation from 1.8 V to 6.0 V. The inputs and outputs can operate from rail to rail at a very high slew rate. These devices are an excellent choice for cost-constrained applications where low-voltage operation, high slew rate, and low quiescent current is needed. The capacitive-load drive of the TLV905x family is 150 pF, and the resistive open-loop output impedance makes stabilization easier with much higher capacitive loads.
