Texas Instruments

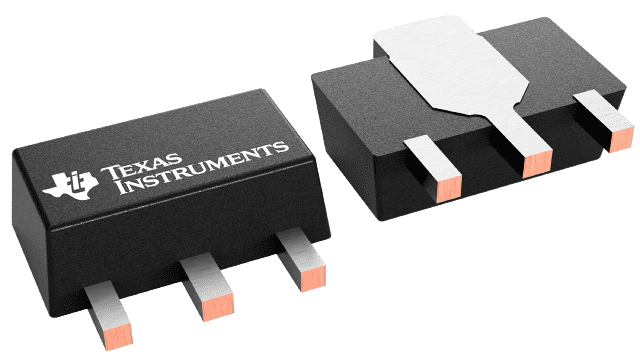

TLVH431IPK
TLVH431IPK
Regular price
$0.13 USD
Regular price
Sale price
$0.13 USD
Unit price
per
Couldn't load pickup availability
TLVH431IPK Texas Instruments - Yeehing Electronics
1.5% low-voltage wide-operating current adjustable precision shunt regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.453 |
| 100 — 249 | 0.308 |
| 250 — 999 | 0.238 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Voltage References |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-89-3 |
| Reference Type | Shunt Adjustable Precision References |
| Output Voltage | Adjustable |
| Initial Accuracy | 1.5 % |
| Temperature Coefficient | 138 PPM / C |
| Series VREF - Input Voltage - Max | 20 V |
| Shunt Current - Max | 80 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TLVH431 |
| Packaging | Reel |
| Description/Function | LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATOR |
| Height | 1.5 mm |
| Length | 4.5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage References |
| Width | 2.5 mm |
| Brand | Texas Instruments |
| Shunt Current - Min | 80 uA |
| Topology | Shunt References |
| Maximum Output Voltage | 18 V |
| Moisture Sensitive | Yes |
| Product Type | Voltage References |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002356 oz |
For more information, please refer to datasheet
Documents
| TLVH431IPK Datasheet |
