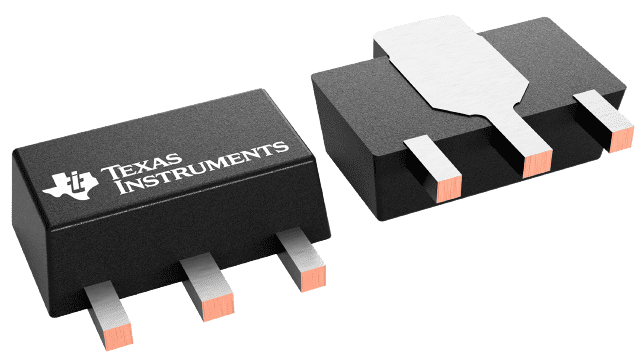

TLVH432QPK Texas Instruments - Yeehing Electronics

1.5% low-voltage wide-operating current adjustable precision shunt regulator (reverse pinout)

Pricing (USD)

Quantity	Unit Price
1 — 99	0.583
100 — 249	0.448
250 — 999	0.33
1,000 +	0.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Voltage References
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SOT-89-3
Reference Type	Shunt Adjustable Precision References
Output Voltage	Adjustable
Initial Accuracy	1.5 %
Temperature Coefficient	138 PPM / C
Series VREF - Input Voltage - Max	20 V
Shunt Current - Max	80 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TLVH432
Packaging	Reel
Description/Function	LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATOR
Height	1.5 mm
Length	4.5 mm
Operating Temperature Range	- 40 C to + 125 C
Product	Voltage References
Width	2.5 mm
Brand	Texas Instruments
Shunt Current - Min	80 uA
Topology	Shunt References
Maximum Output Voltage	18 V
Moisture Sensitive	Yes
Product Type	Voltage References
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet
