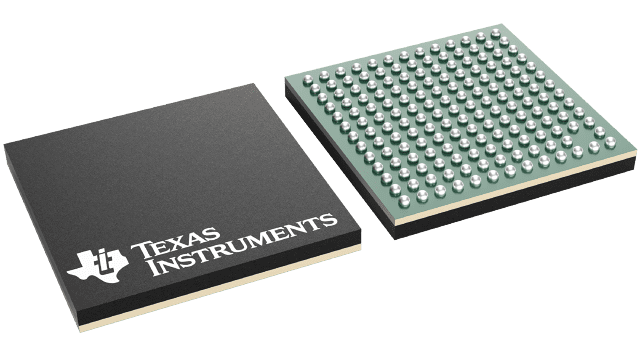

TM4C123GH6ZXRI7 Texas Instruments - Yeehing Electronics
32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, USB, 168-pin BGA
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 10.309 |
100 — 249 | 9.005 |
250 — 999 | 6.943 |
1,000 + | 4.35 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | ARM Microcontrollers - MCU |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | nFBGA-168 |
Series | TM4C123GH6ZXR |
Core | ARM Cortex M4F |
Data Bus Width | 32 bit |
Maximum Clock Frequency | 80 MHz |
Program Memory Size | 2 kB |
Data RAM Size | 32 kB |
ADC Resolution | 12 bit |
Number of I/Os | 120 I/O |
Operating Supply Voltage | 3.3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Tray |
Height | 0.85 mm |
Length | 7 mm |
Product | MCU |
Program Memory Type | Flash |
Width | 7 mm |
Brand | Texas Instruments |
Data RAM Type | SRAM |
Data ROM Size | 2 kB |
Data ROM Type | EEPROM |
Interface Type | CAN, I2C, SSI, UART, USB |
Analog Supply Voltage | 3.3 V |
DAC Resolution | 12 bit |
Moisture Sensitive | Yes |
Number of ADC Channels | 24 Channel |
Number of Timers/Counters | 6 x 16 bit/32 bit, 6 x 32 bit/64 bit |
Processor Series | Tiva C |
Product Type | ARM Microcontrollers - MCU |
Factory Pack Quantity | 260 |
Subcategory | Microcontrollers - MCU |
Supply Voltage - Max | 3.63 V |
Supply Voltage - Min | 3.15 V |
Watchdog Timers | Watchdog Timer |
Unit Weight | 0.004011 oz |
For more information, please refer to datasheet
Documents
TM4C123GH6ZXRI7 Datasheet |
More Information
The TM4C123GH6ZXR microcontroller is targeted for industrial applications, including remote monitoring, electronic point-of-sale machines, test and measurement equipment, network appliances and switches, factory automation, HVAC and building control, gaming equipment, motion control, transportation, and fire and security.
