Texas Instruments
TM4C123GH6ZXRI7R
TM4C123GH6ZXRI7R
Regular price
$3.72 USD
Regular price
Sale price
$3.72 USD
Unit price
per
Couldn't load pickup availability

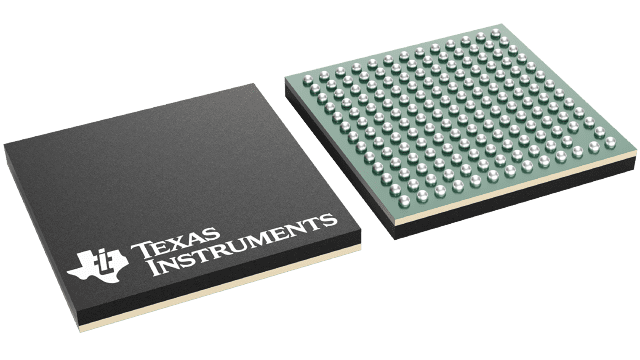

TM4C123GH6ZXRI7R Texas Instruments - Yeehing Electronics
32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, USB, 168-pin BGA
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.815 |
| 100 — 249 | 7.7 |
| 250 — 999 | 5.937 |
| 1,000 + | 3.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | ARM Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-168 |
| Series | TM4C123GH6ZXR |
| Core | ARM Cortex M4F |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 80 MHz |
| Program Memory Size | 2 kB |
| Data RAM Size | 32 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 120 I/O |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Height | 0.85 mm |
| Length | 7 mm |
| Product | MCU |
| Program Memory Type | Flash |
| Width | 7 mm |
| Brand | Texas Instruments |
| Data RAM Type | SRAM |
| Data ROM Size | 2 kB |
| Data ROM Type | EEPROM |
| Interface Type | CAN, I2C, SSI, UART, USB |
| Analog Supply Voltage | 3.3 V |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 24 Channel |
| Number of Timers/Counters | 6 x 16 bit/32 bit, 6 x 32 bit/64 bit |
| Processor Series | Tiva C |
| Product Type | ARM Microcontrollers - MCU |
| Factory Pack Quantity | 1000 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 3.63 V |
| Supply Voltage - Min | 3.15 V |
| Watchdog Timers | Watchdog Timer |
For more information, please refer to datasheet
Documents
| TM4C123GH6ZXRI7R Datasheet |
More Information
The TM4C123GH6ZXR microcontroller is targeted for industrial applications, including remote monitoring, electronic point-of-sale machines, test and measurement equipment, network appliances and switches, factory automation, HVAC and building control, gaming equipment, motion control, transportation, and fire and security.
