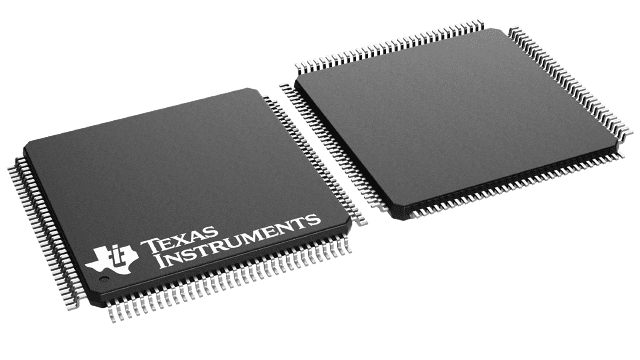

TM4C1290NCPDTT3 Texas Instruments - Yeehing Electronics
32-bit Arm Cortex-M4F based MCU with 120-MHz, 1-MB Flash, 256-kb RAM, USB
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 11.403 |
100 — 249 | 9.96 |
250 — 999 | 7.68 |
1,000 + | 5.50 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | ARM Microcontrollers - MCU |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | TQFP-128 |
Series | TM4C1290NCPDT |
Core | ARM Cortex M4 |
Data Bus Width | 32 bit |
Maximum Clock Frequency | 120 MHz |
Program Memory Size | 6 kB |
Data RAM Size | 256 kB |
ADC Resolution | 12 bit |
Number of I/Os | 90 I/O |
Operating Supply Voltage | 3.3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Packaging | Tray |
Program Memory Type | Flash |
Brand | Texas Instruments |
Data RAM Type | SRAM |
Data ROM Size | 6 kB |
Data ROM Type | EEPROM |
Interface Type | CAN, I2C, SSI, UART, USB |
Moisture Sensitive | Yes |
Number of ADC Channels | 20 |
Number of Timers/Counters | 8 Timer |
Processor Series | Tiva C |
Product Type | ARM Microcontrollers - MCU |
Factory Pack Quantity | 90 |
Subcategory | Microcontrollers - MCU |
Unit Weight | 0.017760 oz |
For more information, please refer to datasheet
Documents
TM4C1290NCPDTT3 Datasheet |
More Information
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
