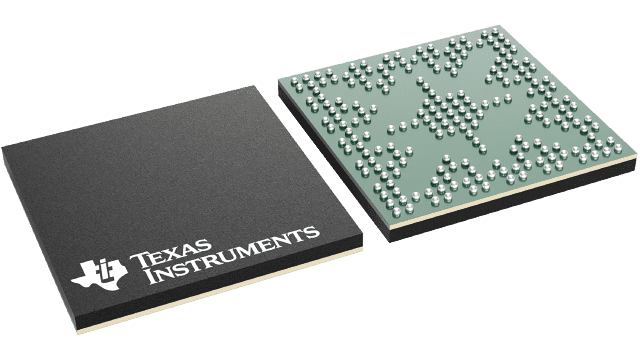

TM4C1290NCZADT3


YeeHing #: Y010-TM4C1290NCZADT3
Inventory: 5200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TM4C1290NCZADT3 Texas Instruments - Yeehing Electronics

32-bit Arm Cortex-M4F based MCU with 120-MHz, 1-MB Flash, 256-kb RAM, USB

Pricing (USD)

Quantity Unit Price
1 — 99 11.655
100 — 249 10.18
250 — 999 7.849
1,000 + 4.91

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category ARM Microcontrollers - MCU
RoHS Y
Mounting Style SMD/SMT
Package / Case nFBGA-212
Series TM4C1290NCZAD
Core ARM Cortex M4F
Data Bus Width 32 bit
Maximum Clock Frequency 120 MHz
Program Memory Size 6 kB
Data RAM Size 256 kB
ADC Resolution 12 bit
Number of I/Os 140 I/O
Operating Supply Voltage 1.2 V, 3.3 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Height 1 mm
Length 10 mm
Product MCU+FPU
Program Memory Type Flash
Width 10 mm
Brand Texas Instruments
Data RAM Type SRAM
Data ROM Size 6 kB
Data ROM Type EEPROM
Interface Type CAN, I2C, SSI, UART, USB
Analog Supply Voltage 3.3 V
Moisture Sensitive Yes
Number of ADC Channels 24 Channel
Processor Series Tiva C
Product Type ARM Microcontrollers - MCU
Factory Pack Quantity 184
Subcategory Microcontrollers - MCU
Supply Voltage - Max 3.63 V
Supply Voltage - Min 1.14 V
Watchdog Timers Watchdog Timer
Unit Weight 0.005781 oz

For more information, please refer to datasheet

Documents

TM4C1290NCZADT3 Datasheet

More Information

Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
