Texas Instruments
TM4C1294KCPDTT3
TM4C1294KCPDTT3
Regular price
$5.44 USD
Regular price
Sale price
$5.44 USD
Unit price
per
Couldn't load pickup availability

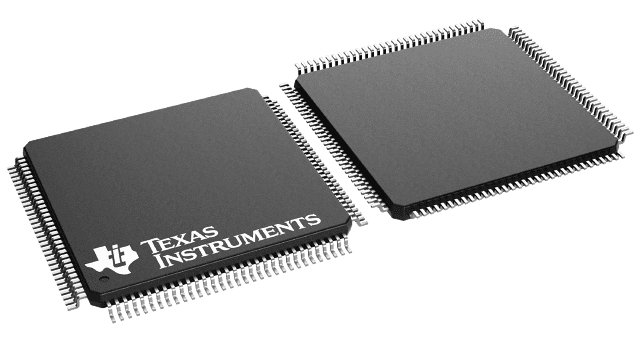

TM4C1294KCPDTT3 Texas Instruments - Yeehing Electronics
32-bit Arm Cortex-M4F based MCU with 120-MHz, 512-kb Flash, 256-kb RAM, USB, ENET MAC+PHY
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.295 |
| 100 — 249 | 9.866 |
| 250 — 999 | 7.607 |
| 1,000 + | 5.44 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | ARM Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-128 |
| Series | TM4C1294KCPDT |
| Core | ARM Cortex M4 |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 120 MHz |
| Program Memory Size | 6 kB |
| Data RAM Size | 256 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 90 I/O |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Data RAM Type | SRAM |
| Data ROM Size | 6 kB |
| Data ROM Type | EEPROM |
| Interface Type | Ethernet, CAN, I2C, SSI, UART, USB |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 20 |
| Number of Timers/Counters | 8 Timer |
| Processor Series | Tiva C |
| Product Type | ARM Microcontrollers - MCU |
| Factory Pack Quantity | 90 |
| Subcategory | Microcontrollers - MCU |
| Unit Weight | 0.017760 oz |
For more information, please refer to datasheet
Documents
| TM4C1294KCPDTT3 Datasheet |
More Information
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
