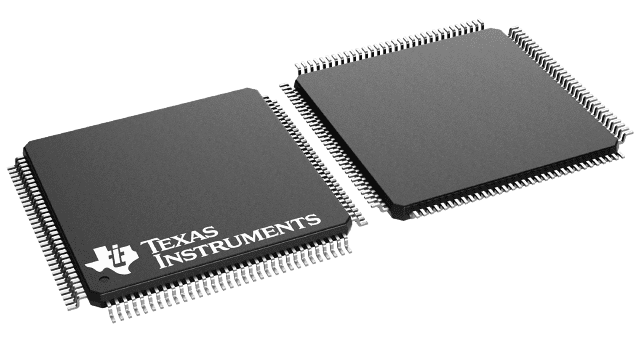

TM4C1294NCPDTI3 Texas Instruments - Yeehing Electronics

32-bit Arm Cortex-M4F based MCU with 120-MHZ, 1-MB flash, 256-KB RAM, USB, ENET MAC+PHY

Pricing (USD)

Quantity	Unit Price
1 — 99	15.06
100 — 249	13.154
250 — 999	10.142
1,000 +	6.35

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	ARM Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TQFP-128
Series	TM4C1294NCPDT
Core	ARM Cortex M4
Data Bus Width	32 bit
Maximum Clock Frequency	120 MHz
Program Memory Size	6 kB
Data RAM Size	256 kB
ADC Resolution	12 bit
Number of I/Os	98 I/O
Operating Supply Voltage	3.3 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tray
Program Memory Type	Flash
Brand	Texas Instruments
Data RAM Type	SRAM
Data ROM Size	6 kB
Data ROM Type	EEPROM
Interface Type	CAN, Ethernet, I2C, QSSI, UART, USB
Moisture Sensitive	Yes
Number of ADC Channels	20
Processor Series	Tiva C
Product Type	ARM Microcontrollers - MCU
Factory Pack Quantity	90
Subcategory	Microcontrollers - MCU
Unit Weight	0.017637 oz

For more information, please refer to datasheet

Documents

TM4C1294NCPDTI3 Datasheet

More Information

Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
