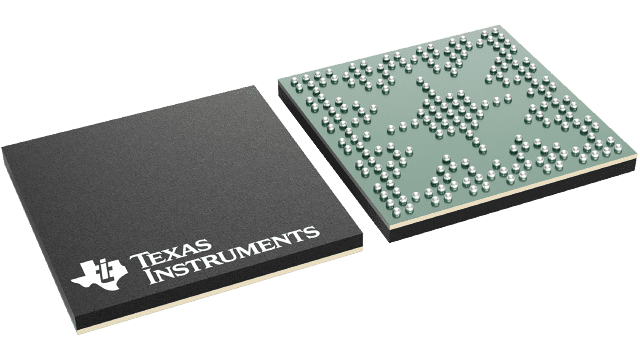

TM4C129DNCZADI3 Texas Instruments - Yeehing Electronics
32-bit Arm Cortex-M4F based MCU with 120-MHz, 1-MB Flash, 256-kb RAM, USB, ENET MAC+MII, AES
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 15.382 |
100 — 249 | 13.436 |
250 — 999 | 10.359 |
1,000 + | 6.49 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | ARM Microcontrollers - MCU |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | nFBGA-212 |
Series | TM4C129DNCZAD |
Core | ARM Cortex M4F |
Data Bus Width | 32 bit |
Maximum Clock Frequency | 120 MHz |
Program Memory Size | 6 kB |
Data RAM Size | 256 kB |
ADC Resolution | 12 bit |
Number of I/Os | 140 I/O |
Operating Supply Voltage | 1.2 V, 3.3 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Packaging | Tray |
Height | 1 mm |
Length | 10 mm |
Product | MCU+FPU |
Program Memory Type | Flash |
Width | 10 mm |
Brand | Texas Instruments |
Data RAM Type | SRAM |
Data ROM Size | 6 kB |
Data ROM Type | EEPROM |
Interface Type | CAN, I2C, SSI, UART, USB |
Analog Supply Voltage | 3.3 V |
Moisture Sensitive | Yes |
Number of ADC Channels | 24 Channel |
Processor Series | Tiva C |
Product Type | ARM Microcontrollers - MCU |
Factory Pack Quantity | 184 |
Subcategory | Microcontrollers - MCU |
Supply Voltage - Max | 3.63 V |
Supply Voltage - Min | 1.14 V |
Watchdog Timers | Watchdog Timer |
For more information, please refer to datasheet
Documents
TM4C129DNCZADI3 Datasheet |
More Information
Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
