Texas Instruments

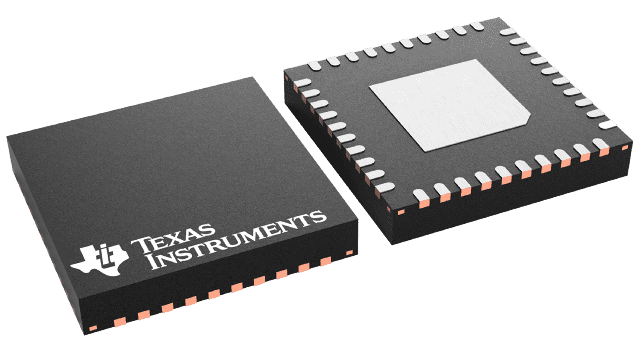

TMDS141RHAR
TMDS141RHAR
Regular price
$0.54 USD
Regular price
Sale price
$0.54 USD
Unit price
per
Couldn't load pickup availability
TMDS141RHAR Texas Instruments - Yeehing Electronics
2.25-Gbps HDMI 1.3a TMDS redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.713 |
| 100 — 249 | 3.253 |
| 250 — 999 | 2.281 |
| 1,000 + | 0.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Series | TMDS141 |
| Operating Supply Current | 130 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Display Interface IC |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
| Unit Weight | 0.003668 oz |
For more information, please refer to datasheet
Documents
| TMDS141RHAR Datasheet |
More Information
The TMDS141 HDMI hider is designed to accommodate a 1-m HDMI cable between a HDMI connector and a receiver. The internal cable causes signal distortion to high-speed TMDS signals, as well as increasing capacitance to the DDC channel. Each TMDS141 contains four TMDS repeaters to transmit digital content with signaling rates of up to 2.25-Gbps, and an I2C repeater to link extended display identification data (EDID) reading and high-bandwidth digital content protection (HDCP) key exchange under I2C standard mode operations.
