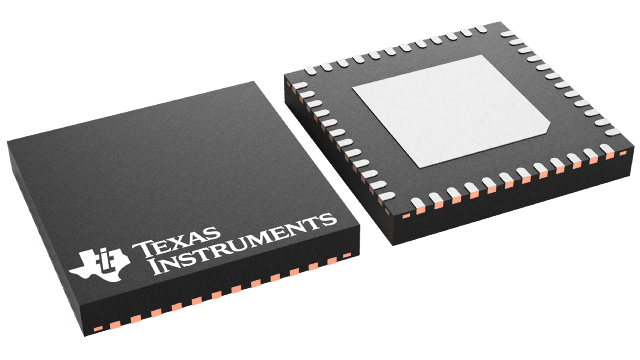

TMDS181RGZR Texas Instruments - Yeehing Electronics
6-Gbps HDMI 2.0 TMDS retimer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.165 |
| 100 — 249 | 4.211 |
| 250 — 999 | 3.309 |
| 1,000 + | 1.96 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Series | TMDS181 |
| Type | TMDS Retimer |
| Maximum Operating Frequency | 400 kHz |
| Operating Supply Voltage | 1.2 V, 3.3 V |
| Operating Supply Current | 350 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Data Rate | 6 Gb/s |
| Description/Function | Digital video interface or high-definition multimedia interface retimer |
| Output Type | Differential |
| Product | Display Interfaces |
| Brand | Texas Instruments |
| Interface Type | I2C |
| Development Kit | TMDS181RGZEVM |
| Moisture Sensitive | Yes |
| Product Type | Display Interface IC |
| Factory Pack Quantity | 2500 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.465 V |
| Supply Voltage - Min | 1.1 V |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
| TMDS181RGZR Datasheet |
More Information
The TMDS181x is a digital video interface (DVI) or high-definition multimedia interface (HDMI™) retimer. The TMDS181x supports four TMDS channels, audio return channel (SPDIF_IN/ARC_OUT), and digital display control (DDC) interfaces. The TMDS181x supports signaling rates up to 6 Gbps to allow for the highest resolutions of 4k2k60p 24 bits per pixel and up to WUXGA 16-bit color depth or 1080p with higher refresh rates. The TMDS181x can be configured to support the HDMI2.0a standard. The TMDS181x automatically configures itself as a redriver at low data rate (<1.0 Gbps) or as a retimer above this data rate. Redriver mode supports HDMI1.4b with data rates up to 3.4 Gbps
