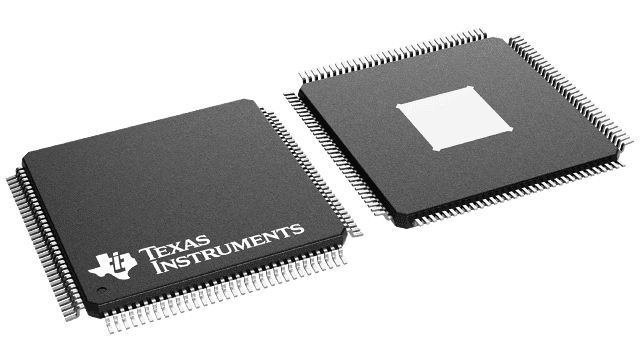

TMDS442PNPR Texas Instruments - Yeehing Electronics
2.25-Gbps 4-to-2 DVI/HDMI1.3a mux
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.441 |
100 — 249 | 4.436 |
250 — 999 | 3.486 |
1,000 + | 2.07 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Video Switch ICs |
RoHS | Y |
Product | HDMI/DVI Switches |
Configuration | 1 x 4 |
On Resistance - Max | 50 Ohms |
Operating Supply Voltage | 3.3 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Mounting Style | SMD/SMT |
Package / Case | HTQFP-128 |
Packaging | Reel |
Series | TMDS442 |
Supply Type | Single Supply |
Brand | Texas Instruments |
Supply Current - Max | 412 mA |
Moisture Sensitive | Yes |
Number of Switches | 4 Switch |
Pd - Power Dissipation | 1.431 W |
Product Type | Video Switch ICs |
Propagation Delay Time | 15 ns |
Factory Pack Quantity | 1000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 3 V |
Switch Continuous Current | 250 mA |
Unit Weight | 0.017524 oz |
For more information, please refer to datasheet
Documents
TMDS442PNPR Datasheet |
More Information
The TMDS442, 4-to-2 port DVI/HDMI switch, allows up to 4 digital video interface (DVI) or high-definition multimedia interface (HDMI) ports to be switched to two independent display blocks. The essential requirement of picture-in-picture display from two digital audiovisual sources is having two individual DVI or HDMI receivers in a digital display system. TMDS442 supports two DVI or HDMI receivers to enable multiple-source selection (picture-in-picture), as well as supports acting as a 4-input 1-output video switch.
