Description
TMP103DYFFR Texas Instruments - Yeehing Electronics
±2°C Digital temperature sensor with I2C/SMBus capable of 1.4V in WCSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.939 |
| 100 — 249 | 0.722 |
| 250 — 999 | 0.532 |
| 1,000 + | 0.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Temperature Sensors |
| RoHS | Y |
| Output Type | Digital |
| Configuration | Local |
| Accuracy | +/- 1 C |
| Supply Voltage - Min | 1.4 V |
| Supply Voltage - Max | 3.6 V |
| Interface Type | 2-Wire, I2C, SMBus |
| Resolution | 8 bit |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | Shutdown |
| Temperature Threshold | Programmable |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-4 |
| Product | Sensor |
| Packaging | Reel |
| Series | TMP103 |
| Brand | Texas Instruments |
| Operating Supply Current | 3 uA |
| Product Type | Temperature Sensors |
| Factory Pack Quantity | 3000 |
| Subcategory | Sensors |
| Unit Weight | 0.000025 oz |
For more information, please refer to datasheet
Documents
| TMP103DYFFR Datasheet |
More Information

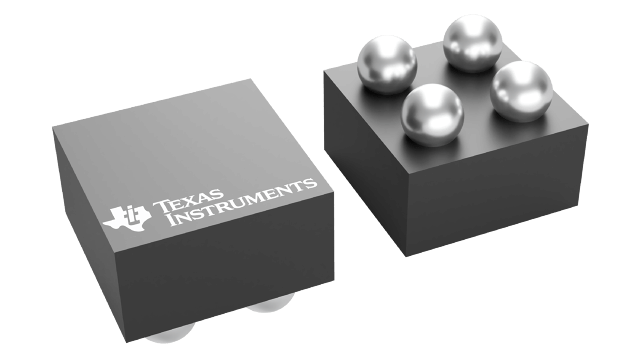

The TMP103 is a digital output temperature sensor in a four-ball wafer chip-scale package (WCSP). The TMP103 is capable of reading temperatures to a resolution of 1°C.
